| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Current Rating (Nominal @ Ambient) | |
| Current Rating (Nominal @ T 60) | |
| Flammability Class | |
| Header Orientation | |
| Impulse Voltage Rating | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| PCB Hole Diameter | |
| Pitch | |
| Pollution Degree | |
| Positions Per Level | |
| Screw Flange | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

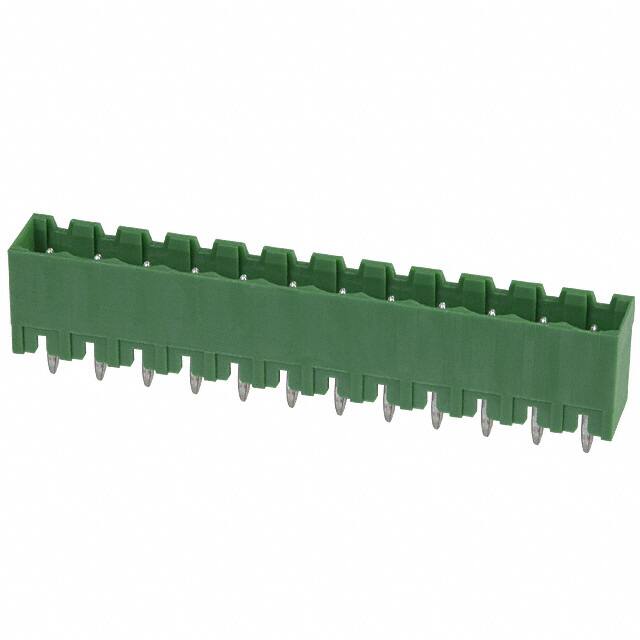

The EDSTLZ955/12 is a 12-position terminal block header from the EDSTLZ955 series by On Shore Technology Inc. It features a 5.08mm pitch and a vertical orientation with solder mounting. The header is shrouded on four sides for secure mating with compatible plugs. Electrical ratings include 300V rated voltage and 15A current rating at ambient temperature, derated to 12A at 60°C ambient. The part is designed for through-hole soldering and has a PCB hole diameter of 1.4mm. The insulating material is PA/PBTP with a UL94 V-0 flammability rating, and contacts are made of copper. The operating temperature range is -30°C to 105°C. The header is RoHS3 compliant and has a moisture sensitivity level of 1. This header is suitable for use in industrial control, power distribution, and other applications requiring reliable wire-to-board connections.
12 positions.
5.08mm (0.200 inches).
15A at ambient temperature, derated to 12A at 60°C ambient.
300V.
Through-hole solder.
-30°C to 105°C.
PA/PBTP (Polyamide/PBT) with UL94 V-0 flammability rating.
