| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Additional Functions | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Output Voltage Range | |
| Package Type | |
| Power (Watts) | |
| Protections | |
| Standard Package Quantity | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width | |
| msl_level |

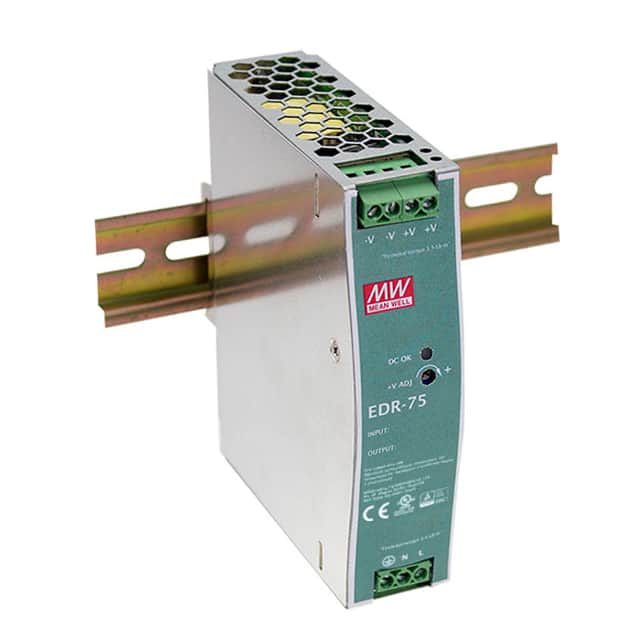

The MEAN WELL EDR-75-48 is a single-output switching power supply designed for DIN rail mounting. It delivers a nominal 48V DC output adjustable from 48 to 55V DC, with a rated current of 1.6A and power of 77W (76.8W per manufacturer). The unit accepts a universal input of 90-264VAC or 127-370VDC, making it suitable for worldwide applications. Efficiency is 88.5%, reducing energy loss and heat generation.
Protections include overload (OPP), overvoltage (OVP), overtemperature (OTP), and short circuit (SCP). The supply operates over a temperature range of -20°C to 60°C with derating required at higher temperatures. It features terminal block connections and includes an output voltage correctness indication function.
Mechanically, the EDR-75-48 measures 102.0mm x 32.0mm x 125.2mm and weighs 449.4g. It is approved by CB, CE, cULus, RCM, and TUV, and is claimed RoHS3 compliant. The series is EDR-75, suitable for industrial control, commercial ITE, and building automation applications.
The nominal output voltage is 48V DC, adjustable from 48 to 55V DC.
The input voltage range is 90-264VAC or 127-370VDC.
The operating temperature range is -20°C to 60°C with derating.
It is claimed RoHS3 compliant, though not verified by a document.
It includes overload (OPP), overvoltage (OVP), overtemperature (OTP), and short circuit (SCP) protection.
The efficiency is 88.5%.
It is approved by CB, CE, cULus, RCM, and TUV.
