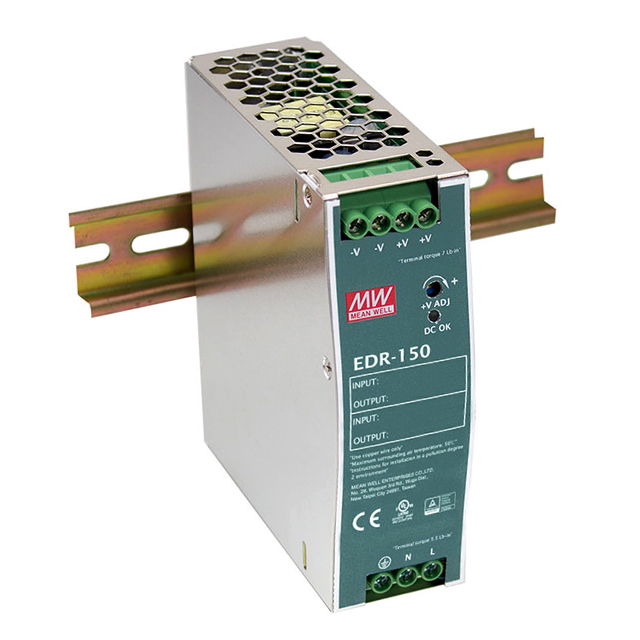

The Mean Well USA EDR-150-24 is a 156-watt AC/DC DIN Rail power supply designed for industrial and commercial applications. It delivers a single 24V output at 6.5A with a typical efficiency of 87%.
This power supply accepts a universal AC input voltage range of 90 to 264 VAC or a DC input of 127 VDC. It features adjustable output voltage and is approved by CB, CE, cULus, RCM, and TUV agencies. The unit is housed in a compact DIN Rail mountable enclosure measuring 113.5mm by 40.0mm by 125.2mm.
With an operating temperature range of -20°C to 60°C (with derating), the EDR-150-24 is suitable for use in industrial control panels, automation systems, and ITE equipment. It provides 3 kV input-to-output isolation for reliable performance in demanding environments.
The EDR-150-24 provides a single 24V output at 6.5A, delivering 156W of power.
It accepts a universal AC input of 90 to 264 VAC or a DC input of 127 VDC.
The operating temperature range is -20°C to 60°C with derating.
Yes, it is listed as RoHS3 Compliant.
It is designed for DIN Rail mounting with screw terminal connections.
The dimensions are 113.5mm in length, 40.0mm in width, and 125.2mm in height.
It achieves a typical efficiency of 87%.
