| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Input Voltage (AC) | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Voltage | |
| Width |

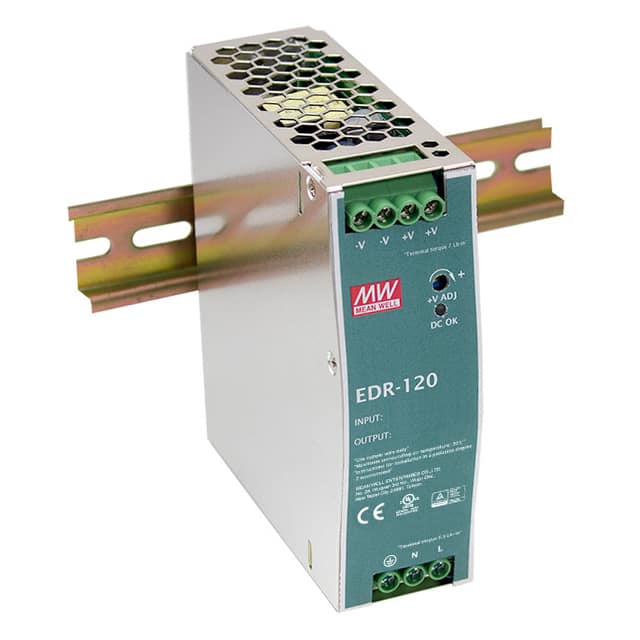

The Mean Well USA EDR-120-24 is a single-output AC/DC DIN Rail power supply rated for 24V at 5A, providing 120W of continuous power. It accepts a universal AC input of 90 to 264 VAC and also supports DC input, making it suitable for global industrial applications. The unit achieves up to 87.5% efficiency and features an adjustable output voltage.
This power supply is designed for DIN Rail mounting and measures 113.5mm x 40.0mm x 125.2mm. It operates over a temperature range of -20°C to 60°C with derating. Safety approvals include CB, CE, cULus, RCM, and TUV, and it is intended for Industrial and ITE (Commercial) applications.
The EDR-120-24 provides a nominal output of 24V DC at 5A, delivering 120W of power.
The EDR-120-24 accepts a universal AC input of 90 to 264 VAC and also supports DC input.
The EDR-120-24 operates from -20°C to 60°C with derating.
Yes, the EDR-120-24 is listed as RoHS3 compliant.
The EDR-120-24 is designed for DIN Rail mounting.
The EDR-120-24 is approved by CB, CE, cULus, RCM, and TUV.
