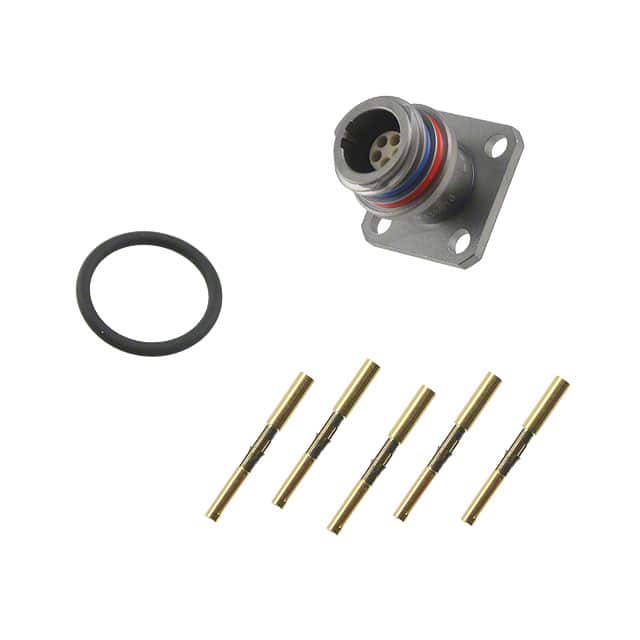

EDN.0M.305.XLM The LEMO EDN.0M.305.XLM is a 5-position circular connector receptacle with female sockets, gold plated contacts, and crimp termination. It features a panel mount with flange, IP68 rating, and ratchet locking system.
Mfr Part #:

EDN.0M.305.XLM

Available from 1 distributors
Mfr Name: Lemo
Lemo
The LEMO EDN.0M.305.XLM is a 5-position circular connector receptacle with female sockets, gold plated contacts, and crimp termination. It features a panel mount with flange, IP68 rating, and ratchet locking system.
✓ Total Stock: 1 pcs

EDN.0M.305.XLM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EDN.0M.305.XLM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Opening
Color
Connector Type
Contact Finish
Contact Resistance
Current Rating
Current Rating (Amps)
Fastening Type
Humidity Rating
Ingress Protection
Insulator Material
Keying
Mating Cycles
Mounting Feature
Mounting Type
Number of Contacts
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Shielding
Termination
Termination Style
Weight
Wire Gauge
View Similar Products (0)

EDN.0M.305.XLM Description

Short technical summary and product information.

The LEMO EDN.0M.305.XLM is a circular connector receptacle from the M Series, designed for rugged environments. It features 5 female sockets configured in the 0M.305 insert arrangement, with gold-plated contacts for reliable signal integrity. The connector uses a crimp termination style, suitable for wire gauges 26-22 AWG, and accommodates cable diameters from 4.00 to 8.00 mm. The shell is aluminum alloy with nickel plating, providing a gray appearance and shielding effectiveness of at least 80 dB at 1 GHz. Electrical ratings include 6.5 A current capacity, contact resistance of 6.1 mOhm max, and dielectric withstanding voltage of 1.25 kV rms between contacts. The connector is IP68 rated for dust and waterproof protection, and operates over a temperature range of -55°C to 200°C (per distributor) or -20°C to 200°C (per datasheet). It is designed for panel mount with a square flange and uses a ratchet locking system for secure mating. Applications include motorsport, defense, transportation, and aerospace. The mating connector is the FMN.0M.305.XLC.

EDN.0M.305.XLM Quick Information

Product Type: Circular Connector Receptacle
Series: M
Canonical Name: LEMO EDN.0M.305.XLM Circular Connector, Receptacle, Female Sockets, 5 Contacts, Shell Size 0M, Crimp Termination, Gold Contact Finish, IP68, Panel Mount
Subcategory: Receptacle, Female Sockets

EDN.0M.305.XLM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EDN.0M.305.XLM Features

  • 5-position female socket receptacle.
  • Gold-plated crimp contacts.
  • IP68 rated for dust and water.
  • Shielded with high EMI performance.
  • Ratchet locking mechanism for secure mating.

EDN.0M.305.XLM Applications

  • Suitable for motorsport and automotive applications.
  • Used in defense and aerospace systems.
  • Ideal for industrial and transportation environments.
  • High-reliability connections in harsh conditions.

EDN.0M.305.XLM FAQs

7 frequently asked questions generated from this part’s specifications.
How many contacts does the EDN.0M.305.XLM have?

It has 5 female socket contacts.

What is the current rating of this connector?

The rated current is 6.5 A.

What mounting type does this connector use?

It is panel mount with a flange.

What is the IP rating?

The connector is rated IP68, dust tight and waterproof.

What is the contact finish?

The contacts are gold plated.

What termination style does this connector use?

It uses crimp termination.

What is the locking system?

The datasheet indicates a ratchet locking system, while distributor data lists threaded. Verify with manufacturer.
