| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

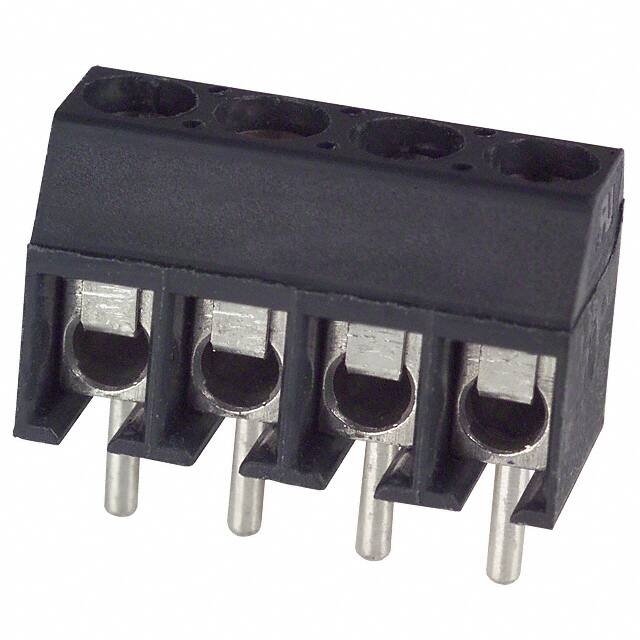

The On Shore Technology Inc. ED555/4DS is a 4-position, single-level wire to board terminal block designed for reliable PCB wiring. It features a 3.50mm (0.138") pitch and accepts wire gauges from 16 to 28 AWG. The terminal block is rated for a current of 6 A and a voltage of 150 V. The wire termination method uses a screw with a leaf spring and wire guard, ensuring secure connections. Mating orientation is horizontal with the board. The housing is gray and the component is mounted through hole, with a lead spacing of 3.50mm. The terminal block is RoHS3 compliant and has an MSL of Level 1 (unlimited). It is REACH unaffected.
The pitch is 3.50mm (0.138").
The current rating is 6 A and the voltage rating is 150 V.
It has 4 positions.
It uses through hole mounting.
