| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,950 pcs
|
1950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

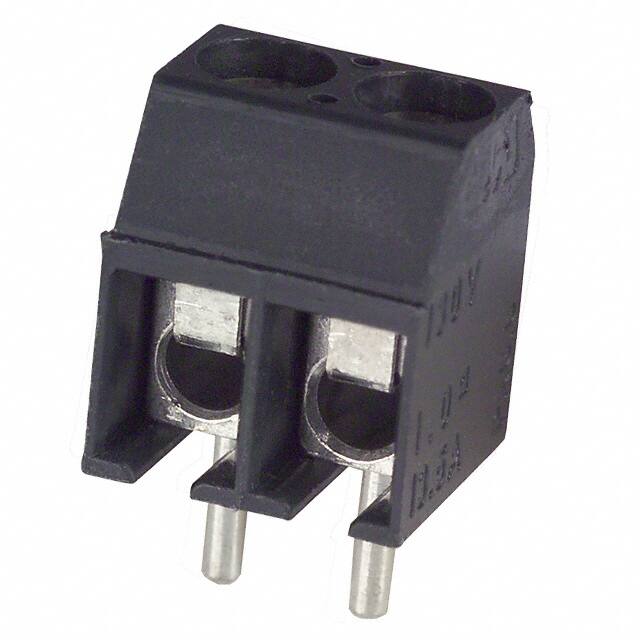

The ED555/2DS is a 2-position, single-level wire to board terminal block from On Shore Technology Inc. It features a 3.5mm pitch and is designed for through hole mounting. The wire termination uses a screw with leaf spring and wire guard, ensuring secure connections for wire sizes from 16 to 28 AWG.
This terminal block is rated for 6A current and 150V voltage. The mating orientation is horizontal with the board. The housing is gray in color.
The ED555/2DS is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for industrial control, power supplies, and general purpose wire-to-board connections.
2 positions.
3.5mm (0.138 inches).
6 A.
150 V.
Through Hole.
16-28 AWG.
Screw with leaf spring and wire guard.
