| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

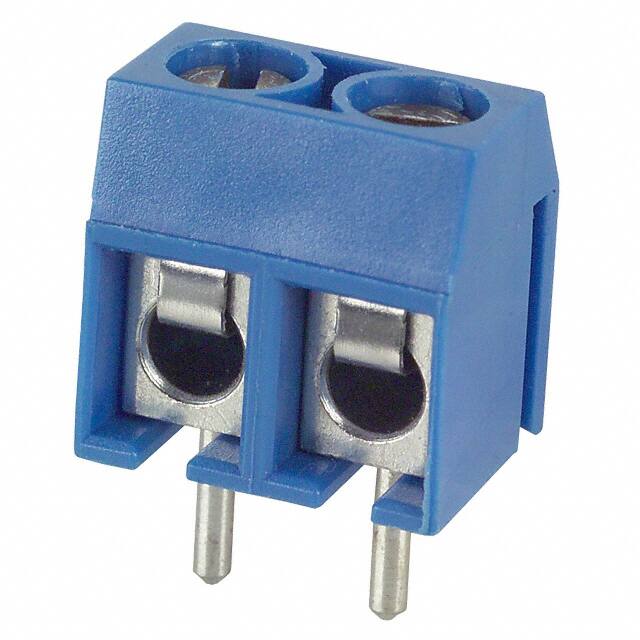

The ED500/2DS is a 2-position wire-to-board terminal block from On Shore Technology Inc., part of the ED500/XXDS series. It features a 5.00mm pitch and a single level, providing a compact solution for PCB connections. The block is rated for 15 A current and 300 V voltage, accommodating wire gauges from 14 to 22 AWG.
The termination style is screw with a leaf spring and wire guard, ensuring secure and reliable connections. The mating orientation is horizontal with the board, and the component is mounted via through hole technology. The housing is blue in color.
This terminal block is RoHS3 compliant and REACH unaffected, with MSL level 1 (unlimited). It is suitable for various industrial and commercial applications requiring a durable and straightforward wire-to-board interface.
2 positions.
5.00 mm.
15 A and 300 V.
14-22 AWG.
Through hole.
Blue.
