Mfr Part #:

ED3001/4-KD

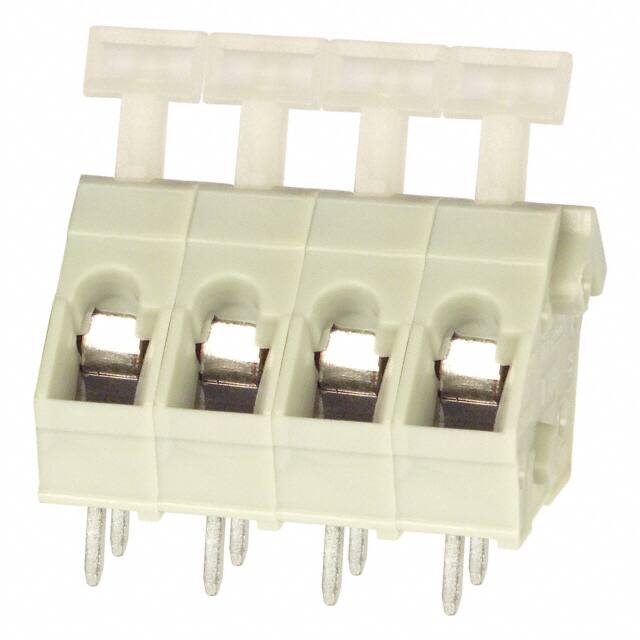

Name: ED3001/4-KD
Brand: On Shore Technology Inc.
SKU: ED3001/4-KD

Description:

TERM BLOCK 4POS 45DEG 5MM PCB

Stock on Request

ED3001/4-KD Description

Short technical summary and product information.

TERM BLOCK 4POS 45DEG 5MM PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ED3001/4-FD

On Shore Technology Inc.

TERM BLOCK 4POS 45DEG 5MM PCB

Category	Wire to Board
Manufacturer Name	On Shore Technology Inc.
Color	Gray, Slate
Current	16 A
Features	Interlocking (Side), Lever Actuated
Mating Orientation	45° (135°) Angle with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch	0.197" (5.00mm)
Positions Per Level	4
Voltage	300 V
Wire Gauge	14-28 AWG
Wire Termination	Screwless - Leg Spring, Push-In Spring
