Mfr Part #:

ED20DT

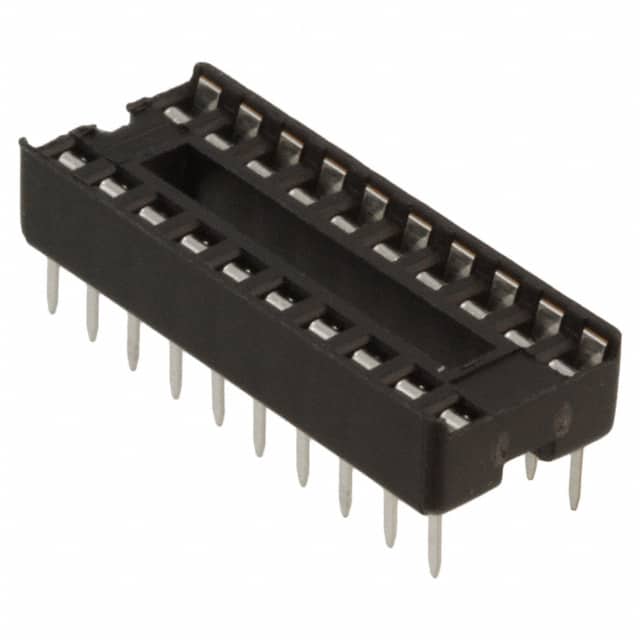

Name: ED20DT
Brand: On Shore Technology Inc.
SKU: ED20DT

Description:

CONN IC DIP SOCKET 20POS TIN

Stock on Request

ED20DT Description

Short technical summary and product information.

CONN IC DIP SOCKET 20POS TIN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	IC Sockets
Manufacturer Name	On Shore Technology Inc.
Contact Finish	Tin
Contact Finish Thickness	60.0µin (1.52µm)
Contact Material	Phosphor Bronze
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20 (2 x 10)
Operating Temperature	-55°C ~ 110°C
Pitch	0.100" (2.54mm)
Termination	Solder
Type	DIP, 0.3" (7.62mm) Row Spacing
