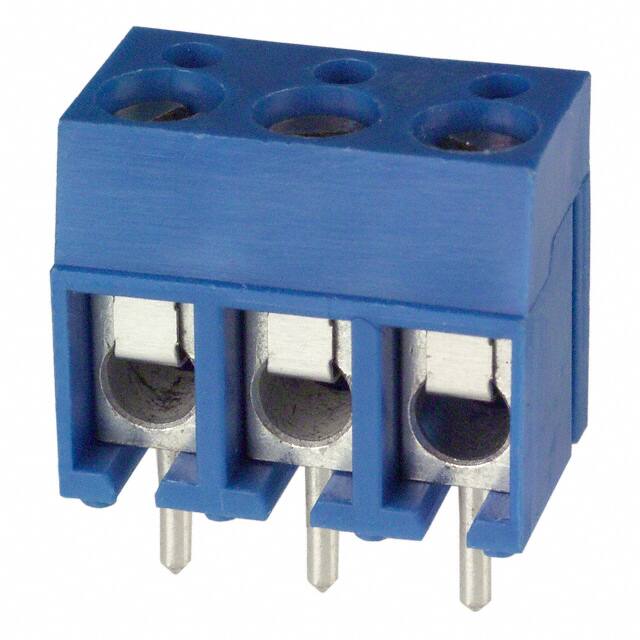

The ED120/3DS is a 3-position, single-level wire to board terminal block manufactured by On Shore Technology Inc. It features a 5.08mm (0.200 inch) pitch and is designed for through hole mounting with a horizontal orientation relative to the board.
This terminal block is rated for 15A continuous current and 300V voltage, making it suitable for power distribution and control applications. The screw termination mechanism incorporates a leaf spring and wire guard to ensure secure and reliable connections for wire sizes ranging from 14 AWG to 22 AWG.
The blue housing provides visual identification. The side-entry design allows for easy wiring in space-constrained PCB layouts. With a single level and 3 positions, it is ideal for compact wire-to-board interconnections.
3 positions.
5.08mm (0.200").
15 A.
300 V.
Through hole.
14-22 AWG.
Screw - leaf spring, wire guard.
