| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 05:15:07 |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

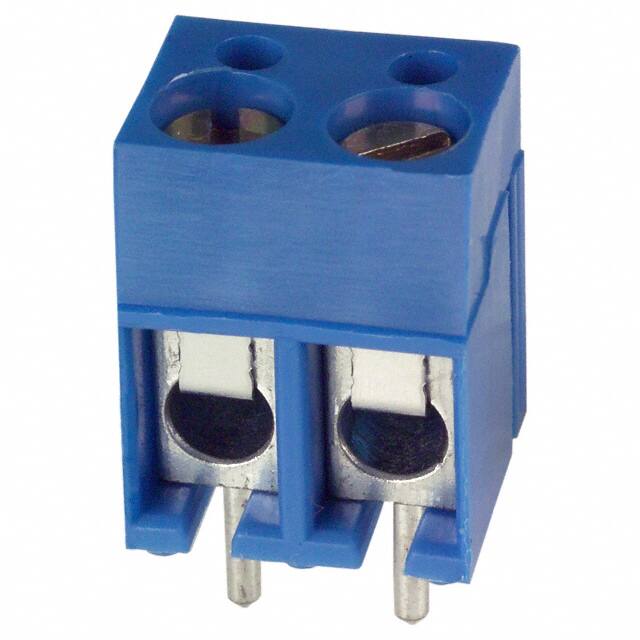

The ED120/2DS is a wire to board terminal block designed for reliable PCB connections. It offers 2 positions with a 5.08mm pitch, accommodating wire gauges from 14 to 22 AWG. The terminal block is rated for 15A at 300V, making it suitable for power distribution and control applications. The screw termination with leaf spring and wire guard ensures secure wire retention. It features a horizontal mating orientation with the board and is mounted via through hole technology. The blue housing provides visual identification. This component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
2 positions.
5.08mm (0.200").
15 A.
300 V.
Through hole.
14-22 AWG.
Screw - Leaf Spring, Wire Guard.
