| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Input Frequency | |
| Input Voltage | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power Consumption | |
| Region Utilized | |
| Specifications |

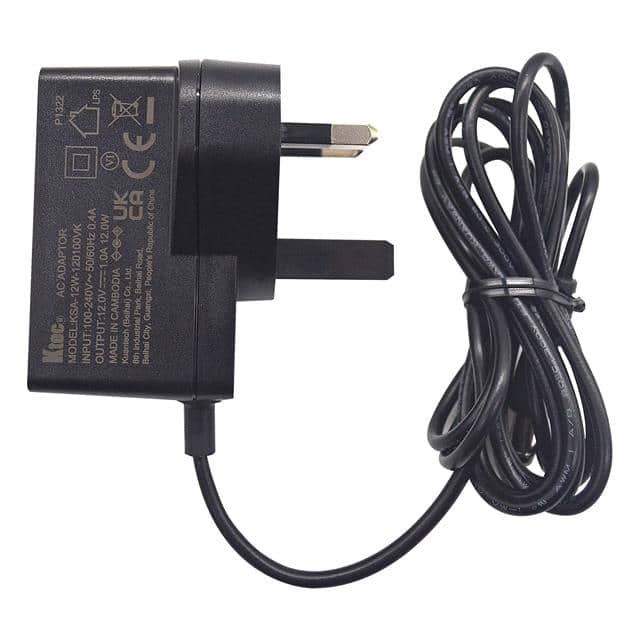

The EDATEC ED-PSU1201-UK is an AC/DC adapter with a 12VDC, 1.0A output, providing a maximum power of 12.0W. It accepts a universal input voltage range of 100-240VAC at 50/60Hz, making it suitable for global use. This adapter is equipped with over-voltage, short-circuit, and overcurrent protection for enhanced safety and reliability.
The adapter features a 1.5-meter power cable with a 5.5*2.5*9.5mm DC plug. It operates within a temperature range of 0-40°C. The unit is certified by UKCA and CE, ensuring compliance with relevant standards.
Key electrical specifications include a rated input current of 0.3A maximum and a no-load power consumption of 0.1W maximum. Line regulation is less than 0.5%, and load regulation is less than 1%. The ripple and noise are kept below 150 mVp-p. Turn-on delay time is a maximum of 1000ms, with a rise time of less than 20ms and a hold-up time of at least 10ms.
This adapter is designed for applications requiring a stable 12V DC power source. Its compact and robust design, along with its safety certifications, makes it a reliable choice for various electronic devices.
The ED-PSU1201-UK adapter has a nominal DC output voltage of 12VDC and a rated load current of 1.0A.
The ED-PSU1201-UK has a rated output power of 12.0W.
The ED-PSU1201-UK adapter accepts a rated input voltage range of 100-240VAC.
Yes, the ED-PSU1201-UK adapter includes over-voltage, short-circuit, and overcurrent protection.
The ED-PSU1201-UK adapter operates within a temperature range of 0-40°C.
The ED-PSU1201-UK adapter is certified by UKCA and CE.
