| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Differential Output Voltage | |
| ESD Sensitivity | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Input Current | |
| Length | |
| Mounting Type | |
| Offset Voltage | |
| Operating Temperature | |
| Output | |
| Output Disable Voltage | |
| Output Enable Voltage | |
| Output Load | |
| Output Symmetry | |
| Package / Case | |
| Rise and Fall Times | |
| Start-up Time | |
| Storage Temperature | |
| Supply Voltage | |
| Termination Finish | |
| Type | |
| Voltage | |
| Width | |
| package_size |

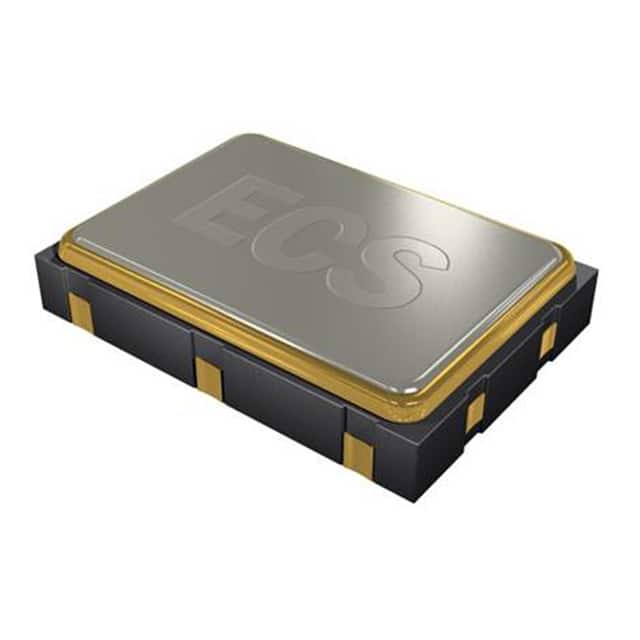

The ECS Inc. ECX-L37BN-75.000 is a 75 MHz LVDS crystal oscillator (XO) in a 7.00mm x 5.00mm surface-mount package. It operates from a 3.3V supply voltage (3.135V to 3.465V) and provides LVDS differential output with 100 Ω load. Frequency stability is ±50 ppm over the full -40°C to +85°C operating temperature range. The oscillator features an enable/disable function controlled via pin 1, with output enable at ≥0.7% Vdd and disable at ≤0.3% Vdd. Typical input current is 16 mA (18 mA max) for the 10-100 MHz range. Rise and fall times are 150 ps to 500 ps (10% to 90% Vdd). Differential output voltage is 175 mV to 350 mV with a typical offset voltage of 1.25 V. The device is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity. Termination finish is gold (Au). Storage temperature range is -55°C to +125°C.
The supply voltage is 3.3V with a range of 3.135V to 3.465V.
The oscillator is in a 6-SMD, No Lead package measuring 7.00mm x 5.00mm with a height of 1.70mm.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant.
The output is LVDS (Low-Voltage Differential Signaling).
Frequency stability is ±50 ppm.
Yes, it has an enable/disable function controlled via pin 1.
