| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

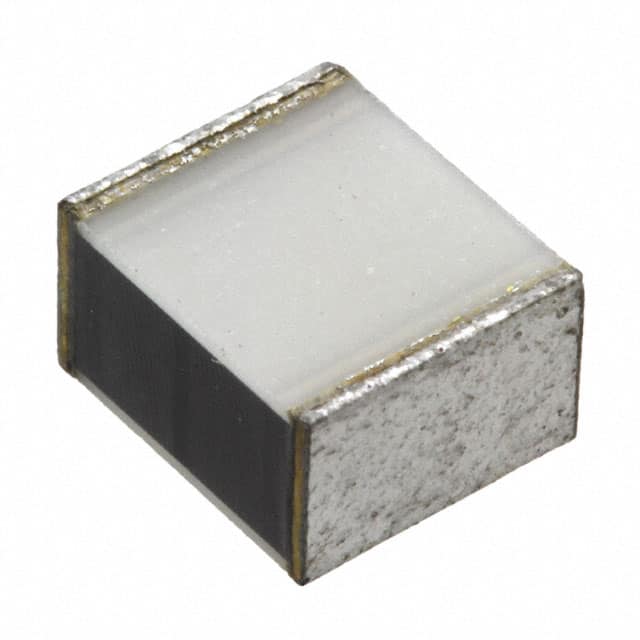

The ECW-UC2J273JV is a stacked metallized PEN (Polyethylene Naphthalate) film chip capacitor from Panasonic Electronic Components, part of the ECWU(C) series. It features a capacitance of 0.027 µF with a tolerance of ±5% and a rated DC voltage of 630V. The capacitor is designed for general purpose applications such as coupling and by-pass circuits.
This capacitor utilizes a stacked metallized PEN film dielectric, which provides small size and stable performance. It is suitable for reflow soldering with a maximum temperature of 250°C. The operating temperature range is -55°C to +125°C, including temperature rise on the unit surface.
The component is housed in a 2825 (7163 Metric) surface mount package with solder pad terminations. Dimensions are 7.10 mm length, 6.30 mm width, and 4.10 mm height. The dissipation factor is limited to 1.0% at 20°C and 1 kHz. Insulation resistance is a minimum of 3000 MΩ at 20°C, 100V, 60 seconds for capacitances ≤ 0.33 µF. The withstand voltage is 945V for 60 seconds (150% of rated voltage).
This part is RoHS3 compliant and REACH unaffected.
0.027 µF.
630V DC.
Polyester, Polyethylene Naphthalate (PEN), metallized and stacked.
±5%.
2825 (7163 Metric) surface mount package.
-55°C to +125°C.
Yes, RoHS3 compliant.
