| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Size - Height | |
| Size - Width | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Withstand Voltage | |
| size_length |

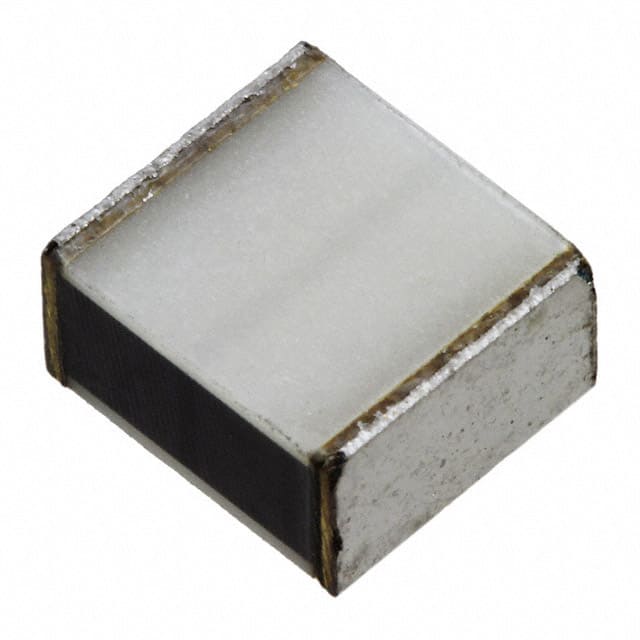

The Panasonic ECW-UC2J223JV is a stacked metallized PEN film capacitor designed for general purpose applications such as coupling and bypass. It offers a capacitance of 0.022 µF with a tight ±5% tolerance and a rated voltage of 630V DC. The capacitor features a dissipation factor of 1.0% maximum at 1 kHz and an insulation resistance of at least 3000 MΩ. It can withstand 150% of rated voltage for 60 seconds. The operating temperature range is -55°C to 125°C. The component is housed in a 2825 (7163 Metric) surface mount package, suitable for reflow soldering with a maximum temperature of 250°C. It is RoHS3 compliant.
0.022 µF.
630V DC.
Polyester, Polyethylene Naphthalate (PEN), metallized stacked.
±5%.
2825 (7163 Metric).
-55°C to 125°C.
Yes, RoHS3 compliant.
