| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
425 pcs
|
425 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Category Temperature Range | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Standard Package Quantity | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

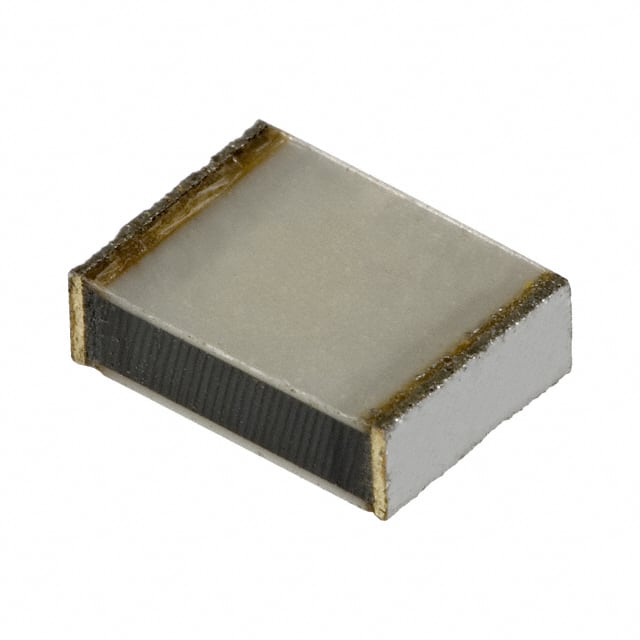

The Panasonic ECW-U4473V17 is a stacked metallized PEN film capacitor designed for DC link and DC filtering applications. It offers a capacitance of 0.047 µF with a tolerance of ±5% and a rated voltage of 400 VDC. The capacitor is surface mountable in a compact 2820 (7150 Metric) package, measuring 7.10 mm x 5.00 mm x 4.20 mm. Electrical characteristics include a dissipation factor of ≤1.0% at 20°C and 1 kHz, and an insulation resistance of ≥3000 MΩ at 20°C and 100 VDC. The withstand voltage between terminals is 600 VDC for 60 seconds. It operates over a temperature range of -55°C to +85°C. The device is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). Standard packaging is provided in tape and reel with 3000 pieces per reel.
0.047 µF with ±5% tolerance.
400 VDC, with a withstand voltage of 600 VDC between terminals.
Stacked metallized Polyethylene Naphthalate (PEN) film.
Surface mount package 2820 (7150 Metric) with dimensions 7.10 mm x 5.00 mm x 4.20 mm.
-55°C to +85°C.
≤1.0% at 20°C and 1 kHz.
Yes, RoHS3 compliant (unverified).
