| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Category Temperature Range | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Height - Seated (Max) | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Soldering Condition - Reflow | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width | |
| Withstand Voltage |

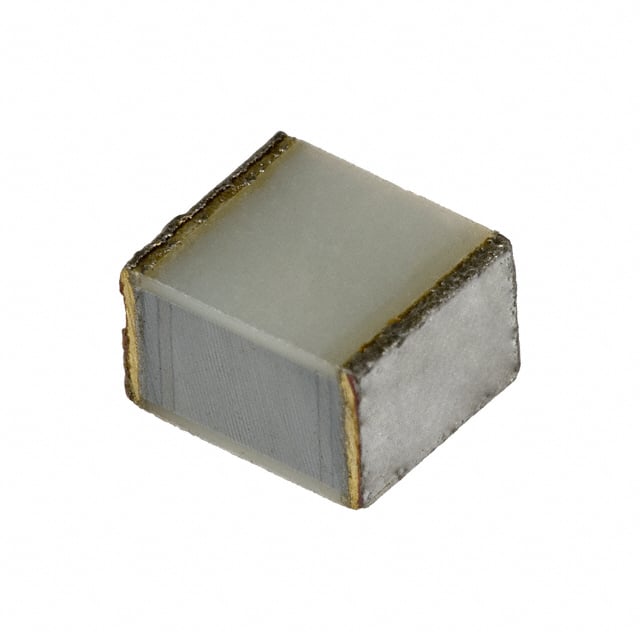

The Panasonic ECW-U2224KCV is a stacked metallized PEN (Polyethylene Naphthalate) film chip capacitor from the ECWU(C) series. It offers a capacitance of 0.22 µF with a DC voltage rating of 250V and a tolerance of ±10%.
This capacitor features a compact 2825 (7163 Metric) surface mount package with solder pad terminations, making it suitable for reflow soldering processes. It operates over a wide temperature range of -55°C to +125°C and exhibits a maximum dissipation factor of 1.0% at 20°C and 1 kHz. The insulation resistance is a minimum of 3000 MΩ at 20°C and 100V for 60 seconds.
Designed for general purpose applications such as coupling and by-pass, the ECW-U2224KCV is RoHS compliant and uses a mold-less stacked construction for small size and reliable performance.
The capacitance is 0.22 µF with a tolerance of ±10%.
The DC voltage rating is 250V.
The dielectric material is stacked metallized Polyethylene Naphthalate (PEN) film.
The package is 2825 (7163 Metric) and the mounting type is surface mount with solder pad terminations.
The operating temperature range is -55°C to +125°C.
Yes, it is RoHS3 compliant as stated in the datasheet.
