| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
162 pcs
|
162 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Soldering Conditions | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

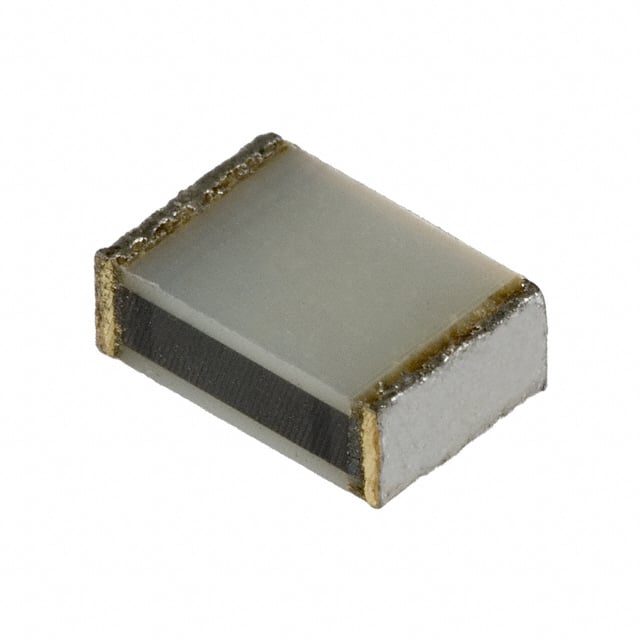

This is a surface mount film capacitor from Panasonic's ECWU(B) series. It has a capacitance of 0.47 µF with ±5% tolerance and a rated voltage of 16 VDC. The dielectric is a stacked metallized polyester/PEN film.
Electrical characteristics include a dissipation factor of 1.0% maximum at 1 kHz, insulation resistance of 470 MΩ minimum (for this capacitance value), and a withstand voltage of 28 V. The operating temperature range is -55°C to +105°C.
The capacitor is housed in a 2416 (6041 Metric) package with solder pad termination. Dimensions are 6.00 mm x 4.10 mm x 3.00 mm (height). It is designed for reflow soldering with a maximum temperature of 240°C for 30 seconds above 210°C.
Typical applications include coupling, bypass, and general purpose circuits. The component is RoHS and REACH compliant.
0.47 µF.
16 VDC.
Polyester, Polyethylene Naphthalate (PEN), metallized and stacked.
±5%.
2416 (6041 Metric) surface mount.
-55°C to 105°C.
1.0% maximum at 1 kHz.
