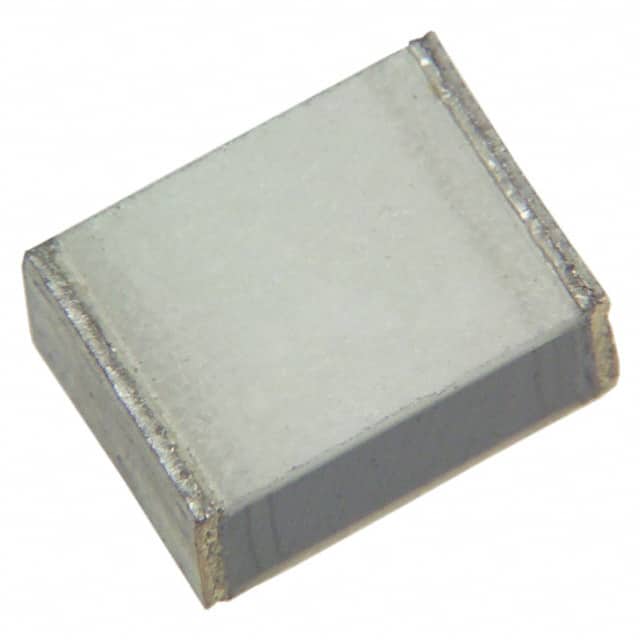

ECW-U1474KCV Surface mount film capacitor with 0.47µF capacitance, 100V DC rating, ±10% tolerance. Suitable for general purpose applications.
Mfr Part #:

ECW-U1474KCV

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Surface mount film capacitor with 0.47µF capacitance, 100V DC rating, ±10% tolerance. Suitable for general purpose applications.
✓ Total Stock: 2,715 pcs

ECW-U1474KCV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,715 pcs
On Request
2715 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECW-U1474KCV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dielectric Material
Height
Lead Style
Length
Mounting Type
Operating Temperature
Tape & Reel
Termination
Termination Style
Tolerance
Voltage Rating
Width
View Similar Products (0)

ECW-U1474KCV Description

Short technical summary and product information.

The ECW-U1474KCV is a surface mount film capacitor from Panasonic Electronic Components. It offers a capacitance of 0.47µF with a voltage rating of 100V DC and a tolerance of ±10%.



The dielectric material is a metallized stacked combination of Polyester and Polyethylene Naphthalate (PEN), providing stable performance. The capacitor is housed in a 3022 (7755 Metric) package with solder pad terminations.



With a wide operating temperature range of -55°C to 125°C, this component is suitable for diverse environments. Its compact dimensions (7.70mm x 5.50mm x 4.20mm) enable space-efficient PCB layouts.



Designed for general purpose applications, it delivers reliable filtering and coupling functions in various electronic circuits.

ECW-U1474KCV Quick Information

Product Type: Film Capacitor
Series: ECW-U(C)
Canonical Name: Panasonic ECW-U1474KCV Film Capacitor, 0.47µF, 100V, ±10%
Subcategory: Metallized Stacked Film Capacitor

ECW-U1474KCV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Non-JEDEC
REACH Status: REACH Unaffected

ECW-U1474KCV Features

  • 0.47µF capacitance with ±10% tolerance.
  • Rated for 100V DC operation.
  • Metallized stacked polyester/PEN dielectric.
  • Surface mount in 3022 (7755 Metric) package.
  • Wide operating temperature -55°C to 125°C.

ECW-U1474KCV Applications

  • General purpose coupling and decoupling circuits.
  • DC voltage smoothing and filtering applications.

ECW-U1474KCV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of ECW-U1474KCV?

0.47 µF.

What is the voltage rating?

100 V DC.

What dielectric material is used?

Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked.

What is the capacitance tolerance?

±10%.

What is the package / case?

3022 (7755 Metric).

What is the operating temperature range?

-55°C to 125°C.

What is the mounting type?

Surface Mount.
