| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Dissipation Factor (tan δ) | |
| Height | |
| Insulation Resistance (Minimum @ 20 °C, 100 V, 60 s) | |
| Insulation Resistance (Minimum @ 20 °C, 500 V, 60 s) | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Rated Voltage (DC) | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage - DC |

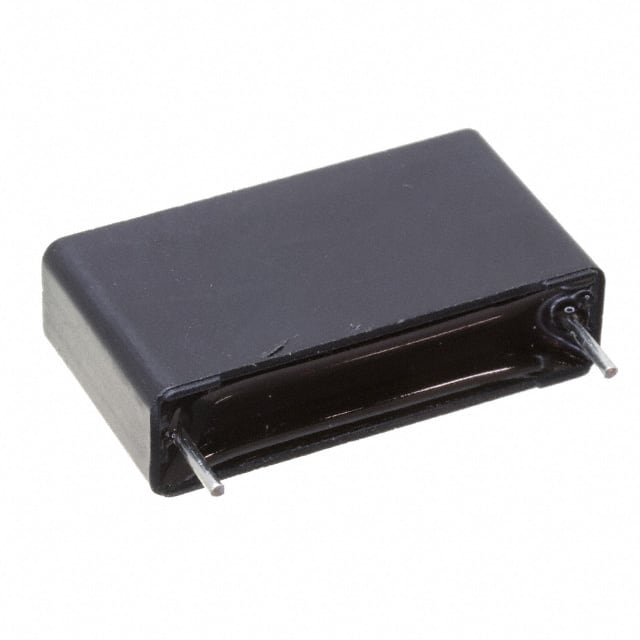

The ECW-FE2J334PD is a metallized polypropylene (PP) film capacitor from Panasonic's ECW-FE series. It has a capacitance of 0.33 µF with ±5% tolerance and a rated DC voltage of 630 V. The capacitor features a non-inductive construction with a flame retardant plastic case, ensuring high safety and small size.
This component is designed for applications requiring EMI, RFI suppression, high frequency, switching, and high pulse or DV/DT conditions. It exhibits excellent frequency characteristics, low loss, and low hum noise. The dissipation factor (tan δ) is ≤0.1% at 20°C, 1 kHz, and the insulation resistance is high, with minimum values of 9,000 MΩ at 100 V and 30,000 MΩ at 500 V for this capacitance range.
The capacitor is through-hole mounted with a radial case and PC pin terminations. The lead spacing is 22.5 mm, and the dimensions are 26.0 mm length, 7.0 mm width, and 14.5 mm height. It operates over a temperature range of -40°C to +105°C, with derating above 85°C. The withstand voltage between terminals is 945 V DC for 60 seconds (150% of rated voltage).
0.33 µF.
630 V DC.
Metallized polypropylene (PP).
±5%.
Radial through-hole package with PC pin terminations and 22.5 mm lead spacing.
-40°C to +105°C.
EMI/RFI suppression, high frequency switching, high pulse, and DV/DT circuits.
