| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating DC | |
| Width |

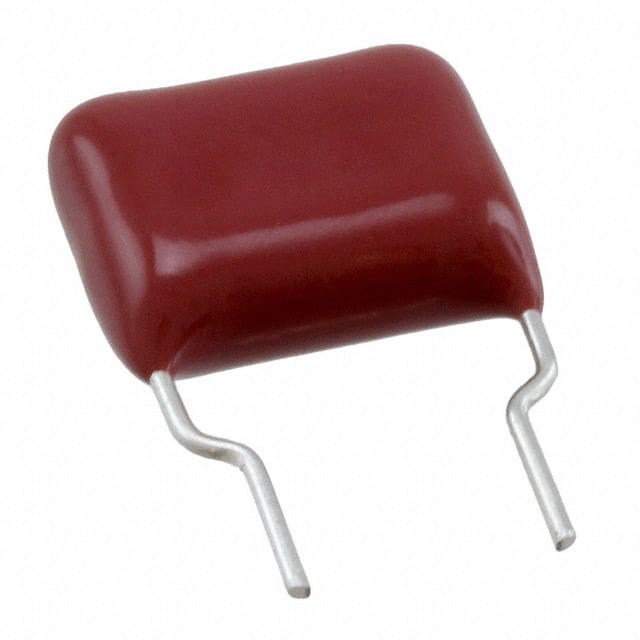

The Panasonic ECW-FD2W185J is a metallized polypropylene film capacitor from the ECW-FD series. It offers a nominal capacitance of 1.8 µF with a ±5% tolerance and a DC voltage rating of 450 V. The capacitor features a non-inductive construction using metallized polypropylene film with a flame retardant epoxy resin coating, providing high safety and small size.
This component is designed for applications requiring EMI and RFI suppression, high frequency switching, and high pulse or dV/dt handling. It exhibits excellent frequency characteristics and low loss, making it suitable for active filter circuits and high frequency circuits. The operating temperature range is -40°C to 110°C.
The ECW-FD2W185J is packaged in a radial through-hole case with PC pin terminations and a lead spacing of 15.00 mm. The dimensions are 17.50 mm length, 10.10 mm width, and 13.30 mm height. It is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.80 | $0.80 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 1.8 µF with a tolerance of ±5%.
The DC voltage rating is 450 V.
The dielectric is metallized polypropylene (PP).
The operating temperature range is -40°C to 110°C.
The package is radial through-hole with a lead spacing of 15.00 mm and PC pin terminations.
Typical applications include EMI/RFI suppression, high frequency switching, and high pulse/dV/dt circuits.
Yes, it is RoHS3 compliant.
