| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

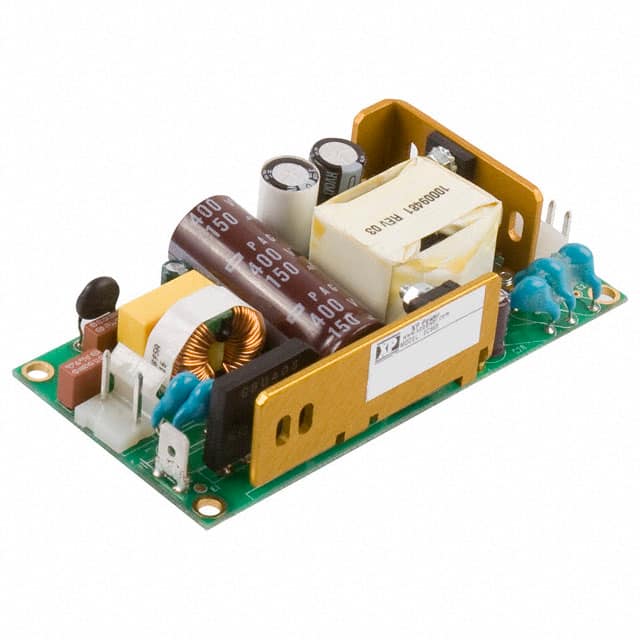

The XP Power ECS65US12 is an open-frame AC/DC converter delivering 65W of power with a 12V output voltage. It accepts a wide input voltage range of 80-264 VAC and operates at frequencies between 47-63 Hz. This converter is designed for chassis mounting and offers features such as adjustable output, DC input capability, and universal input.
With an efficiency of up to 90%, the ECS65US12 minimizes energy waste. It provides robust isolation with 4000 VAC input to output and 1500 VAC input to ground. The operating temperature range is -20°C to +70°C with derating. Safety approvals include CB and compliance with standards like 62368-1.
Key electrical specifications include a maximum output current of 5.4A, line regulation of ±0.5%, and load regulation of ±1%. It also features overvoltage, overload, and short circuit protection. The unit is designed for ITE (Commercial) and Medical applications, offering reliable power conversion for demanding environments.
The ECS65US12 has an output voltage range of 12-48 VDC.
The maximum output current for the ECS65US12 is 5.4 A.
The ECS65US12 accepts an input voltage range of 80-264 VAC.
The efficiency of the ECS65US12 is up to 90%.
The operating temperature range for the ECS65US12 is -20°C to +70°C.
The ECS65US12 complies with standard 62368-1 and has CB approval.
