| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

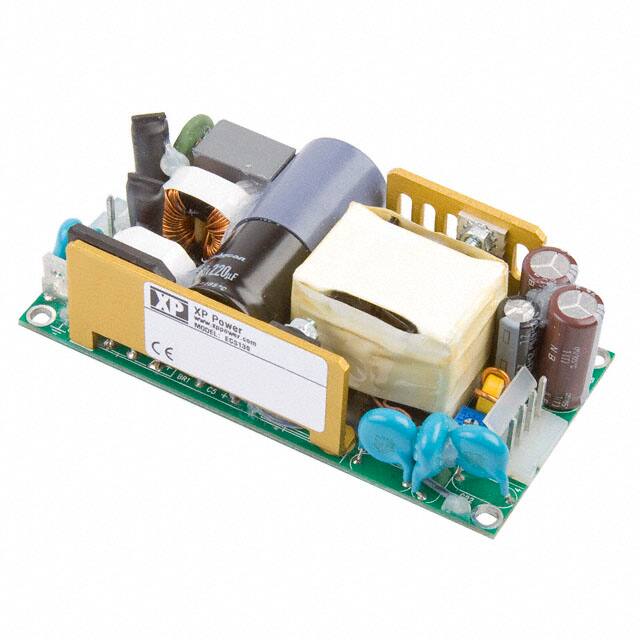

The XP Power ECS130US24 is an open-frame AC-DC power supply delivering 100W of power with a 24V output voltage. It features a universal input range of 80-264 VAC and is designed for chassis mounting.
This converter boasts high efficiency up to 90% and includes features such as adjustable output, DC input capability, and low no-load input power (<0.5W). It meets stringent safety approvals for ITE and Medical applications, including compliance with EN62368-1.
With a compact size of 101.6mm x 50.8mm x 31.8mm, the ECS130US24 operates within a wide temperature range of -20°C to +70°C with derating. It offers robust protection features including overvoltage, overload, and short circuit protection.
Key electrical specifications include line regulation of ±0.5% max and load regulation of ±1% max. The isolation rating is 4000 VAC from input to output. This power supply is suitable for various industrial and medical applications requiring reliable power conversion.
The output voltage is 24 VDC.
The maximum output power is 100W under convection cooling and 130W with forced air.
The input voltage range is 80-264 VAC.
The dimensions are 101.6mm x 50.8mm x 31.8mm.
The operating temperature range is -20°C to +70°C with derating.
Yes, the RoHS status is RoHS3 Compliant.
