| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

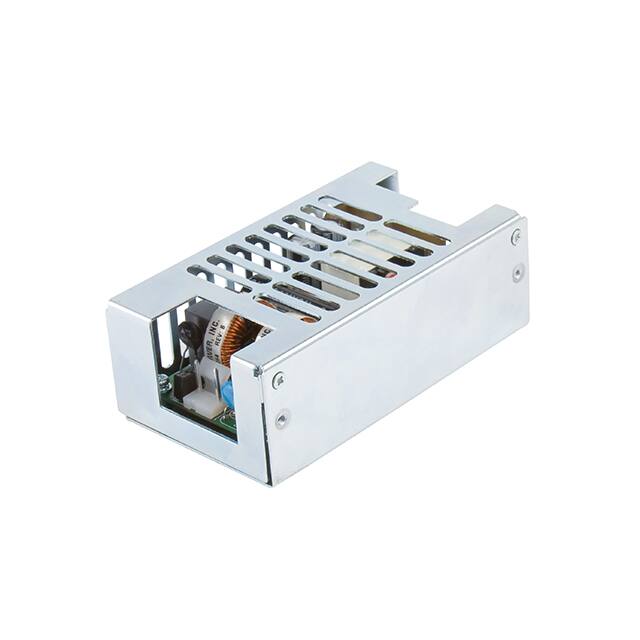

The XP Power ECS100US24-C is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 24V DC output with a maximum current of 4.2A, delivering 80W of power under convection cooling and up to 100W with forced air.
This converter operates with a universal input voltage range of 80-264 VAC and features a high efficiency of up to 90%. Key electrical specifications include ±1% initial set accuracy, ±0.5% line regulation, and ±1% load regulation. It offers robust protection features such as overvoltage, overload, and continuous short circuit protection with hiccup mode.
The unit is designed for chassis mounting and has a compact footprint with dimensions of 101.6mm x 50.8mm x 31.8mm. Environmental specifications include an operating temperature range of -20°C to 70°C with derating. Safety approvals include CB certification, and it meets various EMC standards for emissions and immunity.
The output voltage is 24 VDC.
The maximum output current is 4.2 A.
The input voltage range is 80-264 VAC.
The operating temperature range is -20°C to 70°C, with derating.
It uses chassis mount.
It is suitable for ITE (Commercial) and Medical applications.
