| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Conducted Immunity | |
| Cooling | |
| Current | |
| Dips & Interruptions | |
| Drift | |
| EFT/Burst | |
| ESD Immunity | |
| Earth Leakage Current | |
| Efficiency | |
| Emissions | |
| Features | |
| Harmonic Currents | |
| Height | |
| Hold Up Time | |
| Industrial Grade | |
| Initial Set Accuracy | |
| Input Current | |
| Input Frequency | |
| Input Protection | |
| Input Voltage | |
| Inrush Current | |
| Isolation | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Medical Grade | |
| Minimum Load | |
| Mounting Type | |
| No Load Input Power | |
| Number of Outputs | |
| Operating Altitude | |
| Operating Humidity | |
| Operating Temperature | |
| Output Voltage | |
| Output Voltage Trim | |
| Over/Undershoot | |
| Overload Protection | |
| Overvoltage Protection | |
| Power (Watts) | |
| Power Density | |
| Power Factor | |
| Radiated Immunity | |
| Ripple & Noise | |
| SVHC Present | |
| Shock | |
| Short circuit protection | |
| Standard Number | |
| Start Up Delay | |
| Start Up Rise Time | |
| Storage Temperature | |
| Surge | |
| Switching Frequency | |
| Tape & Reel | |
| Temperature Coefficient | |
| Transient Response | |
| Type | |
| Vibration | |
| Voltage | |
| Voltage Flicker | |
| Width |

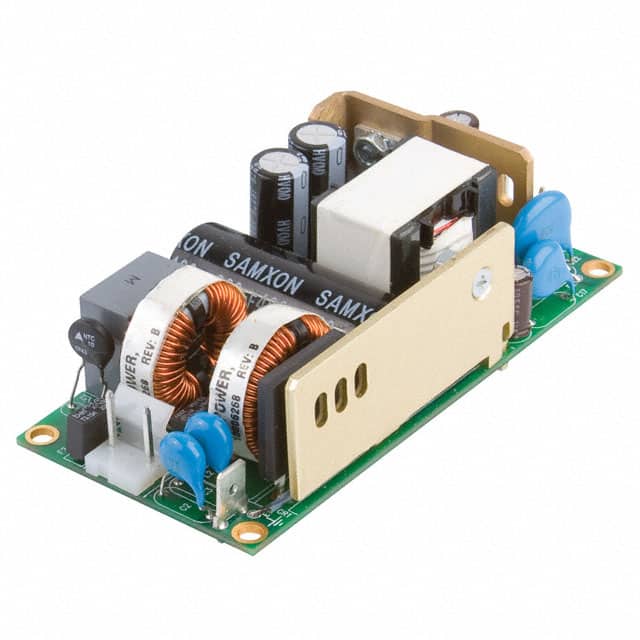

The XP Power ECS100US12 is an open-frame AC/DC converter designed for industrial and medical applications. It provides a 12V DC output and can deliver up to 80W of power under convection cooling, with higher ratings available with forced air.
This converter accepts a wide universal input voltage range of 80-264 VAC at 47-63 Hz, making it suitable for global use. Key electrical specifications include an output voltage trim of ±10%, ±1% initial set accuracy, and ±0.5% maximum line regulation. It offers up to 90% efficiency and a low no-load input power of less than 0.5W.
Protection features include overvoltage, overload (110-160%), and continuous short circuit protection in hiccup mode. The unit provides 4000 VAC isolation between input and output and meets EN61000-3-2 class A for harmonic currents. It operates within a temperature range of -20°C to +70°C with derating.
Designed for chassis mounting, the ECS100US12 has a compact footprint with dimensions of 101.6mm x 50.8mm x 31.8mm. It is suitable for ITE (Commercial) and Medical applications, with safety approvals including CB and compliance with standards like IEC62368-1.
The input voltage range is 80-264 VAC.
The output voltage is 12 VDC.
The maximum output current is 8.3 A.
The power rating is 80W (100W Forced Air).
The operating temperature range is -20°C to +70°C (With Derating).
It uses Chassis Mount.
The dimensions are 101.6mm (Length) x 50.8mm (Width) x 31.8mm (Height).
