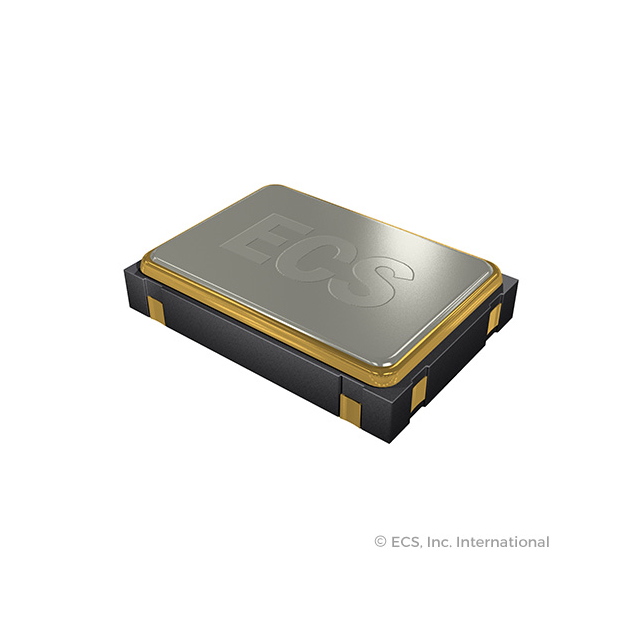

The ECS-VC-TXO32-S3-33-100-BN-TR is a voltage controlled temperature compensated crystal oscillator (VCTCXO) from ECS Inc. It operates at a nominal frequency of 10 MHz with a Clipped Sine Wave output. The device offers a frequency stability of ±280 ppb over the full operating temperature range of -40°C to +85°C, making it suitable for applications requiring tight timing precision.
The oscillator is housed in a compact 4-SMD, No Lead surface mount package measuring 3.2 mm x 2.5 mm x 1.0 mm. It operates from a 3.3V nominal supply voltage (3.135V to 3.465V range) and draws a typical current of 3 mA. The control voltage range is 0.5V to 2.5V, providing an absolute pull range of ±10 ppm.
Phase noise performance is specified at various offsets, with typical values of -90 dBc/Hz at 10 Hz, -120 dBc/Hz at 100 Hz, -140 dBc/Hz at 1 kHz, -145 dBc/Hz at 10 kHz, and -148 dBc/Hz at 100 kHz. Aging is limited to ±0.02 ppm per day and ±1.0 ppm per year. The overall stability including initial tolerance, temperature, supply and load variations, reflow soldering, and 15-year aging is ±4.6 ppm.
This VCTCXO is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (Unlimited). It is designed for applications such as GPS, wireless communications, femtocell, nanocell, and instrumentation requiring Stratum 3 timing performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.64 | $12.64 |
| 10+ | $10.98 | $10.98 |
| 25+ | $10.39 | $10.39 |
| 50+ | $10.16 | $10.16 |
| 1,000+ | $8.36 | $8.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.135V to 3.465V with 3.3V nominal.
4-SMD, No Lead surface mount package, 3.2mm x 2.5mm x 1.0mm.
-40°C to +85°C.
Yes, RoHS3 compliant and REACH unaffected.
±280 ppb maximum over -40°C to +85°C.
Clipped Sine Wave output with 0.8 V p-p typical level.
Typically -145 dBc/Hz (minimum -140 dBc/Hz).
