| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Enable/Disable Time | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Input Current | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Symmetry | |
| Output Type | |
| Output Voltage High | |
| Output Voltage Low | |
| Rise Time | |
| Standard Package Quantity | |
| Start-up Time | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| frequency_stability (Maximum @ -10 °C ~ +70 °C) | |
| frequency_stability (Maximum @ -40 °C ~ +85 °C) | |
| output_load (Nominal @ CMOS) | |
| output_load (Nominal @ TTL) | |
| supply_voltage (Minimum/Nominal/Maximum) | |
| tri_state_control_voltage (Maximum @ High Impedance) | |
| tri_state_control_voltage (Minimum @ Oscillation) |

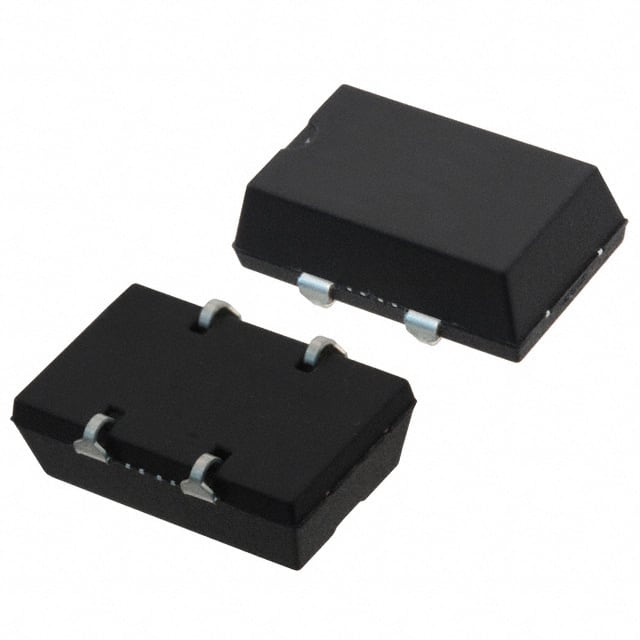

The ECS-8FMX-040-TR is a 4 MHz crystal oscillator from ECS Inc., part of the 8FMX series. It provides both CMOS and TTL compatible outputs with an enable/disable function. The oscillator operates from a 5V nominal supply voltage (4.5V to 5.5V range) and draws a typical input current of 23 mA.
Frequency stability is ±100 ppm over -10°C to +70°C and ±200 ppm over the full -40°C to +85°C operating temperature range. The device features a typical rise and fall time of 8 ns, output symmetry of 40% to 60%, and a maximum start-up time of 4 ms.
Packaged in a 4-SOJ surface-mount package with a 5.08mm pitch and J-Lead style, the oscillator measures 14.00 mm x 8.65 mm x 4.70 mm. It is RoHS3 compliant and supplied on tape and reel with a standard quantity of 1000 pieces per reel.
The operating temperature range is -40°C to +85°C.
The nominal supply voltage is 5V, with a range of 4.5V to 5.5V.
It uses a 4-SOJ surface mount package with a 5.08mm pitch and J-Lead style.
Yes, it is RoHS3 compliant.
Frequency stability is ±100 ppm from -10°C to +70°C and ±200 ppm from -40°C to +85°C.
It supports both CMOS and TTL output types.
