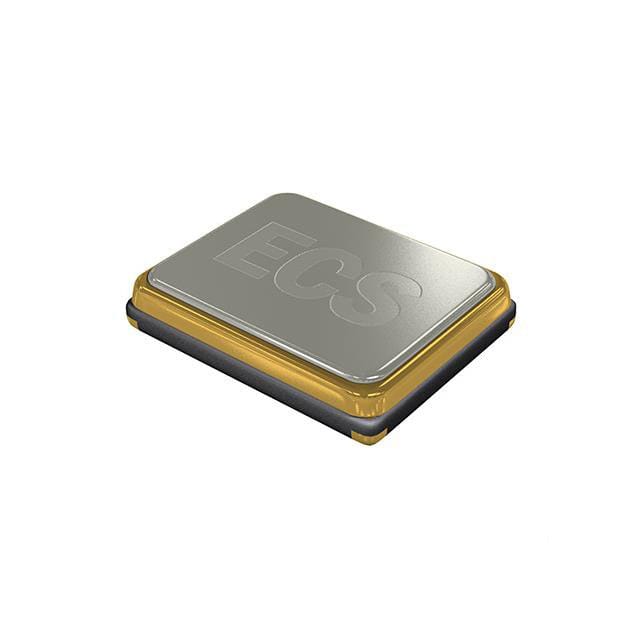

ECS-80-8-33Q-JES-TR 8 MHz surface mount crystal from ECS Inc. with 8 pF load capacitance, ±20 ppm tolerance, and AEC-Q200 qualification for automotive applications.
Mfr Part #:

ECS-80-8-33Q-JES-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
8 MHz surface mount crystal from ECS Inc. with 8 pF load capacitance, ±20 ppm tolerance, and AEC-Q200 qualification for automotive applications.
✓ Total Stock: 94,934 pcs

ECS-80-8-33Q-JES-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
94,934 pcs
On Request
94934 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-80-8-33Q-JES-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Package / Case
Ratings
Tape & Reel
Type
Width
View Similar Products (0)

ECS-80-8-33Q-JES-TR Description

Short technical summary and product information.

The ECS-80-8-33Q-JES-TR is a 8 MHz quartz crystal operating in fundamental mode. It features a load capacitance of 8 pF, maximum equivalent series resistance of 500 Ohms, frequency tolerance of ±20 ppm at +25°C, and frequency stability of ±50 ppm over the full operating temperature range of -40°C to +125°C. This crystal is AEC-Q200 qualified, making it suitable for automotive and high-reliability applications. It is packaged in a 4-SMD, no lead package with dimensions 3.2mm x 2.5mm x 0.8mm, and is RoHS3 compliant. The drive level is 100 µW typical, and shunt capacitance is 7 pF typical. The part is supplied in tape and reel packaging with 1000 pieces per reel.

ECS-80-8-33Q-JES-TR Quick Information

Product Type: Crystal
Series: ECX-33Q
Canonical Name: 8 MHz AEC-Q200 Crystal, 8 pF Load, 4-SMD, No Lead
Subcategory: Crystal

ECS-80-8-33Q-JES-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-80-8-33Q-JES-TR Features

  • 8 MHz fundamental mode quartz crystal.
  • 8 pF load capacitance rating.
  • AEC-Q200 qualified for automotive use.
  • Surface mount 4-SMD, no lead package.
  • Wide operating temperature range -40°C to +125°C.

ECS-80-8-33Q-JES-TR Applications

  • Used in automotive engine control units.
  • Ideal for infotainment and telematics systems.
  • Suitable for industrial IoT sensors.
  • Applied in safety-critical automotive modules.
  • Used in high-reliability communication modules.

ECS-80-8-33Q-JES-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of this crystal?

8 MHz.

What is the load capacitance?

8 pF.

What is the frequency tolerance and stability?

Frequency tolerance is ±20 ppm at +25°C, and frequency stability is ±50 ppm over -40°C to +125°C.

What is the operating temperature range?

-40°C to +125°C.

Is the crystal RoHS compliant?

Yes, it is RoHS3 compliant.

Is the crystal AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified.

What is the package type?

4-SMD, No Lead, surface mount package with dimensions 3.2mm x 2.5mm x 0.8mm.
