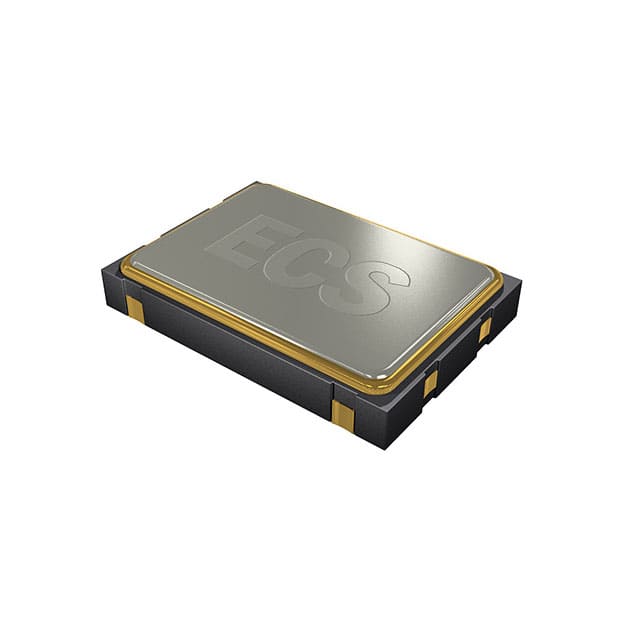

The ECS-5032MV-200-CN-TR is a 20 MHz surface mount crystal oscillator (XO) from ECS Inc. with a standard HCMOS output. It features a frequency stability of ±25 ppm and operates over a temperature range of -40°C to +85°C. The oscillator supports a wide supply voltage range of 1.6V to 3.6V, making it compatible with multiple power supply voltages including 1.8V, 2.5V, and 3.3V.
Housed in a compact 5.0mm x 3.2mm x 1.3mm 4-SMD, no lead ceramic package, the device is suitable for surface mount assembly. The output is enabled/disabled via the tri-state function on pin 1. Key electrical characteristics include a maximum current consumption of 7 mA (note: datasheet indicates 6.0 mA max for 20 MHz at 3.3V, verify condition), rise/fall time of 7 ns, typical phase jitter of 1 ps, and a startup time of 5 ms. The duty cycle is 45/55%.
This oscillator is designed for low power, portable, industrial, and IoT applications where a stable clock source is required. The MultiVolt capability allows operation from a single supply voltage without needing different part numbers for different voltage levels. The device is RoHS3 compliant and MSL Level 1.
1.6V to 3.6V.
4-SMD, No Lead, 5.0mm x 3.2mm x 1.3mm.
-40°C to +85°C.
Yes, it is RoHS3 compliant.
±25 ppm.
HCMOS.
1 ps (12 kHz to 20 MHz).
