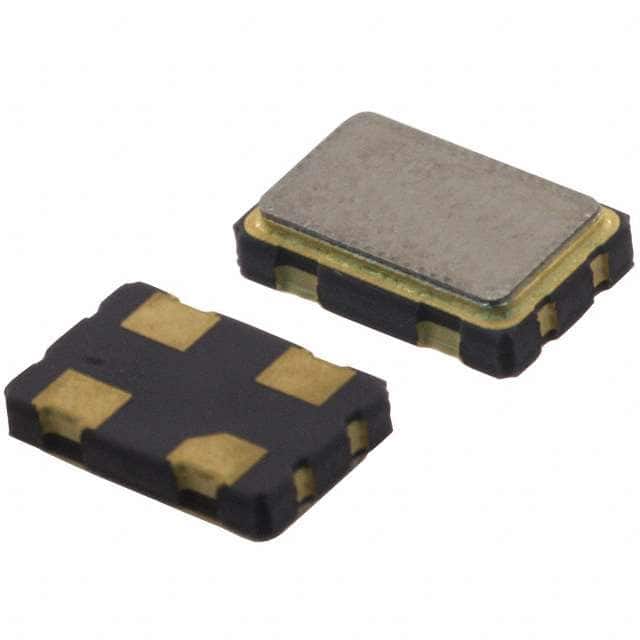

ECS-3963-270-BN-TR XTAL OSC XO 27.0000MHZ HCMOS SMD. This surface mount oscillator from ECS Inc. operates at 27 MHz with 3.3V supply and ±50ppm frequency stability.
Mfr Part #:

ECS-3963-270-BN-TR

Available from 2 distributors
Mfr Name: ECS Inc.
ECS Inc.
XTAL OSC XO 27.0000MHZ HCMOS SMD. This surface mount oscillator from ECS Inc. operates at 27 MHz with 3.3V supply and ±50ppm frequency stability.
✓ Total Stock: 775 pcs

ECS-3963-270-BN-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
588 pcs
On Request
588 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
187 pcs
On Request
187 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-3963-270-BN-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Storage Temperature
Supply Voltage
Type
Voltage
Width
View Similar Products (0)

ECS-3963-270-BN-TR Description

Short technical summary and product information.

The ECS-3963-270-BN-TR is a 27 MHz crystal oscillator (XO) from ECS Inc.'s ECS-3963 series. It features a standard HCMOS output and operates from a 3.3V supply voltage (2.7V to 3.6V range). The oscillator offers ±50ppm frequency stability across the extended industrial temperature range of -40°C to +85°C, making it suitable for demanding environments.



This device provides a tri-state enable/disable function via pin 1, allowing output control. The typical input current is 10 mA for the 10.0 to 34.999 MHz range, with a maximum start-up time of 10 ms. Output symmetry is 40/60% at 50% VCC level, and rise/fall times are 5 ns maximum.



The oscillator is housed in a compact 5.00mm x 3.20mm x 1.30mm 4-SMD, no lead package, designed for surface mount assembly. The industry-standard footprint and tape-and-reel packaging (1,000 units per reel) facilitate automated placement. The ECS-3963-270-BN-TR is RoHS3 compliant and lead-free, supporting environmental compliance requirements.

ECS-3963-270-BN-TR Quick Information

Product Type: Oscillator
Series: ECS-3963
Canonical Name: ECS-3963-270-BN-TR - 27 MHz XO Crystal Oscillator, HCMOS, 3.3V, ±50ppm, -40°C to +85°C
Subcategory: SMD Clock Oscillator

ECS-3963-270-BN-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECS-3963-270-BN-TR Features

  • 27 MHz XO crystal oscillator with HCMOS output.
  • 3.3V supply voltage with ±50ppm stability.
  • Extended temperature range from -40°C to +85°C.
  • Compact 5.0mm x 3.2mm SMD package.
  • RoHS3 compliant and lead-free.

ECS-3963-270-BN-TR Applications

  • Used in networking and telecommunications equipment.
  • Suitable for industrial control systems.
  • Ideal for embedded microcontroller clock generation.
  • Applicable in test and measurement instruments.

ECS-3963-270-BN-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the ECS-3963-270-BN-TR?

The nominal supply voltage is 3.3V, with a minimum of 2.7V and maximum of 3.6V.

What is the package type and dimensions of this oscillator?

The oscillator is housed in a 4-SMD, no lead package with dimensions 5.00mm x 3.20mm x 1.30mm.

What is the operating temperature range?

The extended temperature range is -40°C to +85°C.

Is the ECS-3963-270-BN-TR RoHS compliant?

Yes, it is RoHS3 compliant and lead-free as per the datasheet.

What is the frequency stability of this oscillator?

The frequency stability is ±50 ppm over the operating temperature range.

What type of output does this oscillator provide?

It provides HCMOS output with a maximum load of 15 pF.

Does the oscillator have an enable/disable function?

Yes, it has a tri-state enable/disable function controlled via pin 1 with an internal pull-up resistor.
