| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
956 pcs
|
956 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Current - Supply | |
| Enable/Disable Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Height - Seated (Max) | |
| Load Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Symmetry | |
| Package / Case | |
| Rise & Fall Time | |
| Size / Dimension | |
| Standard Package Quantity | |
| Start-up Time | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage |

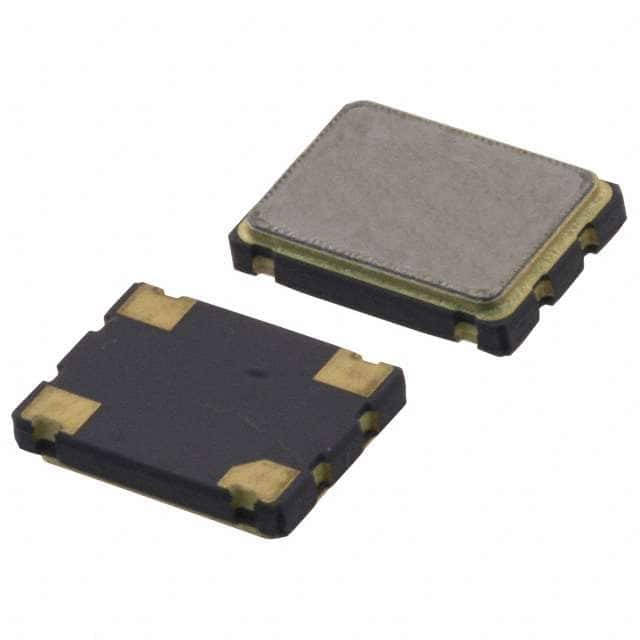

The ECS-3953M-500-B-TR is a miniature, crystal-controlled clock oscillator from the ECS-3953M Series. It operates at a nominal frequency of 50 MHz with HCMOS output logic and a frequency stability of ±50ppm. The device is designed for a 3.3V supply voltage and features an Enable/Disable function for power management.
This oscillator is housed in a 4-SMD, No Lead ceramic package with a seam-welded metal lid, measuring 7.00mm x 5.00mm with a seated height of 1.70mm. It is suitable for surface mount assembly and is supplied in tape and reel packaging with a standard quantity of 1000 pieces. Key electrical characteristics include a typical supply current of 25mA at 50 MHz, a maximum rise/fall time of 5ns, and a start-up time of 10ms.
The ECS-3953M-500-B-TR is designed for low power consumption and is ideal for advanced portable PC and instrumentation designs. It is RoHS3 compliant and REACH unaffected.
The operating supply voltage is 3.3V DC.
It is housed in a 4-SMD, No Lead surface mount package.
The operating temperature range is -10°C to 70°C.
Yes, it is RoHS3 compliant.
The frequency stability is ±50ppm.
It provides HCMOS output logic.
Yes, it features an Enable/Disable function.
