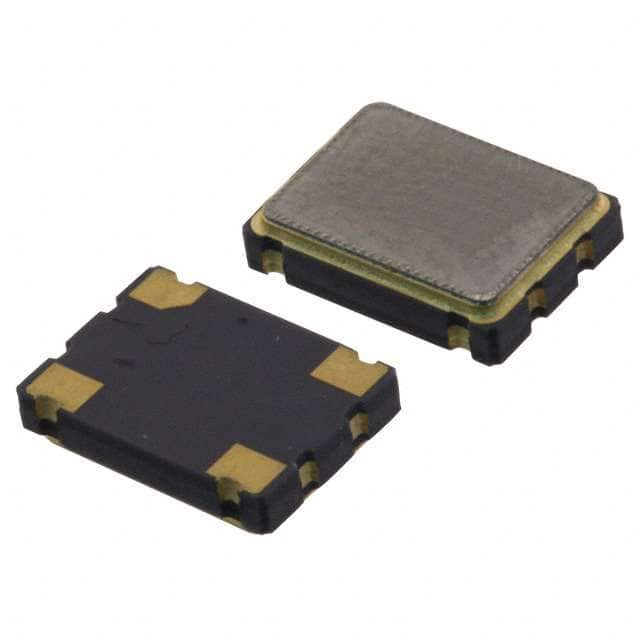

ECS-3953M-320-BN-TR XO (Standard) crystal oscillator by ECS Inc. with 32 MHz frequency, HCMOS output, 3.3V supply, ±50 ppm stability, operating from -40°C to +85°C in a 7.00mm x 5.00mm SMD package.
Mfr Part #:

ECS-3953M-320-BN-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
XO (Standard) crystal oscillator by ECS Inc. with 32 MHz frequency, HCMOS output, 3.3V supply, ±50 ppm stability, operating from -40°C to +85°C in a 7.00mm x 5.00mm SMD package.
✓ Total Stock: 443 pcs

ECS-3953M-320-BN-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
443 pcs
On Request
443 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-3953M-320-BN-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Package / Case
Storage Temperature
Supply Current
Supply Voltage
Type
Voltage
Width
View Similar Products (0)

ECS-3953M-320-BN-TR Description

Short technical summary and product information.

The ECS-3953M-320-BN-TR is a 32 MHz XO (Standard) oscillator from the ECS-3953M-BN series by ECS Inc., designed for industrial temperature applications.



It operates at 3.3V (2.97V to 3.63V) with typical supply current of 15 mA. The oscillator delivers HCMOS output with ±50 ppm frequency stability over the full -40°C to +85°C operating range. Rise and fall times are 15 ns maximum, and start-up time is 5 ms maximum.



The device features enable/disable functionality and comes in a compact 7.00mm x 5.00mm 4-SMD, No Lead package, with a height of 1.70mm. It is surface mount compatible and supplied tape and reel. The part is PbFree/RoHS compliant.

ECS-3953M-320-BN-TR Quick Information

Product Type: Oscillator
Series: ECS-3953M-BN
Canonical Name: ECS-3953M-320-BN-TR Crystal XO 32.0000MHz HCMOS 3.3V SMD Oscillator
Subcategory: Clock Oscillator

ECS-3953M-320-BN-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: PbFree/RoHS Compliant

ECS-3953M-320-BN-TR Features

  • 32 MHz crystal XO oscillator.
  • 3.3V supply voltage operation.
  • ±50 ppm frequency stability.
  • HCMOS output logic compatible.
  • Industrial -40°C to +85°C range.

ECS-3953M-320-BN-TR Applications

  • General purpose clock generation.
  • Industrial control system timing.
  • Networking and communication equipment.

ECS-3953M-320-BN-TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the ECS-3953M-320-BN-TR?

3.3V nominal, with a range of 2.97V to 3.63V.

What is the operating temperature range of this oscillator?

-40°C to +85°C.

What is the package size of the ECS-3953M-320-BN-TR?

7.00mm x 5.00mm x 1.70mm in a 4-SMD, No Lead package.

Is the ECS-3953M-320-BN-TR RoHS compliant?

The datasheet states PbFree/RoHS Compliant.

What is the frequency stability of this oscillator?

±50 ppm over the full operating range.

What output logic does the ECS-3953M-320-BN-TR provide?

HCMOS output.
