| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Enable/Disable Time | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Input Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Output Symmetry | |
| Package / Case | |
| Rise Time | |
| Standard Package Quantity | |
| Startup Time | |
| Storage Temperature | |
| Supply Voltage | |
| Type | |
| Voltage | |
| Width |

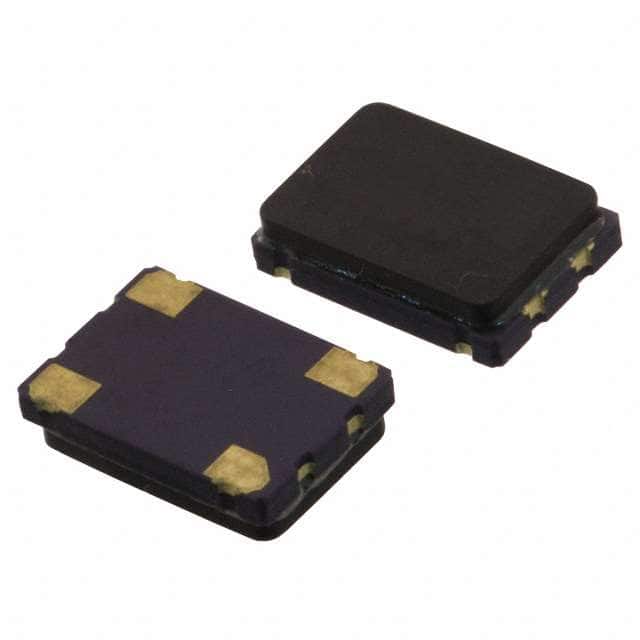

The ECS-3953C-400-TR is a 40 MHz crystal-controlled clock oscillator from ECS Inc. It is part of the ECS-3953C series, designed for low power consumption and surface mount applications. This XO (Standard) oscillator features HCMOS output logic and operates from a 3.3V supply voltage.
Electrical characteristics include frequency stability of ±100 ppm over the standard operating temperature range of 0°C to 70°C. Typical input current is 12 mA for the 35.1-50 MHz range. Output symmetry is 40/60% at 50% VDD, with rise and fall times of 10 ns typical, 15 ns maximum. The enable/disable function allows output control with typical 100 ns switching time.
The oscillator is housed in a 4-SMD, No Lead ceramic package measuring 7.00mm x 5.00mm x 1.75mm. It is supplied in tape and reel packaging with 1000 pieces per reel. The device is RoHS compliant (Note 7 Exemption) and has an MSL rating of 1 (Unlimited).
This oscillator is suitable for general-purpose timing applications requiring a stable 40 MHz clock source. Its low power consumption and small footprint make it ideal for use in networking, telecommunications, and industrial electronics. Note: This part is obsolete/end of life as of January 2021.
The supply voltage range is 3.0V to 3.6V, with a typical value of 3.3V.
The oscillator is housed in a 4-SMD, No Lead surface mount package measuring 7.00mm x 5.00mm x 1.75mm.
The operating temperature range is 0°C to 70°C.
Yes, it is RoHS3 compliant with Note 7 Exemption.
The frequency stability is ±100 ppm.
The output logic is HCMOS.
Typical input current is 12 mA for the 35.1 to 50.0 MHz frequency range.
