| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
543 pcs
|
543 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Disable Delay Time | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Input Current | |
| Lead Style | |
| Length | |
| Logic '0' Level | |
| Logic '1' Level | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Output Symmetry | |
| Output Type | |
| Package / Case | |
| Rise Time | |
| Standard Package Quantity | |
| Start-up Time | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| supply_voltage (Minimum/Nominal/Maximum) |

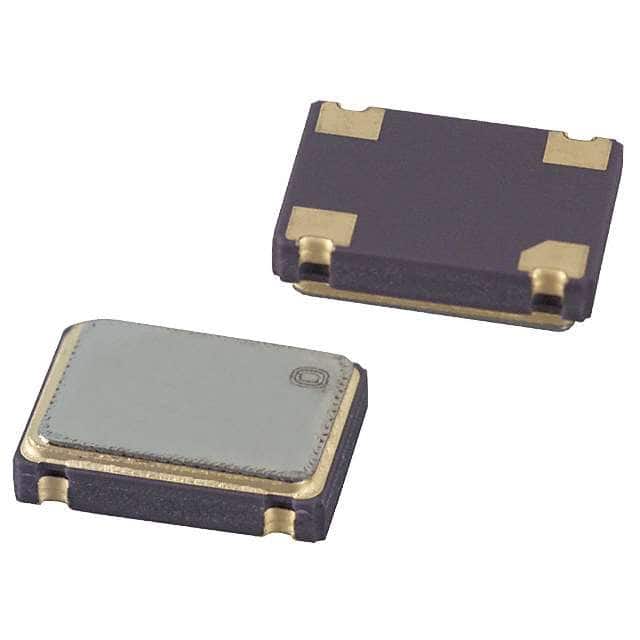

The ECS-3951M-160-BN-TR is a surface-mount clock oscillator from ECS Inc., part of the 3951M series. It provides a 16 MHz HCMOS output with a nominal supply voltage of 5V (4.5V to 5.5V range). The oscillator features a crystal base resonator and an enable/disable function.
Key electrical characteristics include a typical input current of 20 mA, output symmetry of 40/60% at 50% VDD level, and maximum rise/fall times of 15 ns. The start-up time is 5 ms maximum, and the disable delay time is 100 ns maximum. The output load is rated at 30 pF.
The device is housed in a 4-SMD, No Lead package measuring 7.00 mm x 5.00 mm x 1.70 mm, suitable for automated surface-mount assembly. It is rated for operation from -40°C to 85°C and storage from -55°C to 125°C. The part is RoHS3 compliant and REACH unaffected.
The nominal supply voltage is 5V, with a range of 4.5V to 5.5V.
It comes in a 4-SMD, No Lead surface mount package measuring 7.00 mm x 5.00 mm x 1.70 mm.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant (PbFree/RoHS Compliant per datasheet).
The frequency stability is ±50 ppm.
It provides HCMOS output.
Yes, it features an enable/disable function.
