| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
171 pcs
|
171 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Symmetry | |
| Package / Case | |
| Rise & Fall Time | |
| Startup Time | |
| Storage Temperature Range | |
| Supply Current (Maximum @ Maximum) | |
| Supply Current (Typical/Maximum @ 10 MHz – 34.999 MHz) | |
| Supply Voltage (Minimum/Typical/Maximum @ Operating) | |
| Supply Voltage (Nominal @ Nominal) | |
| Tape & Reel Quantity | |
| Type | |
| Voltage | |
| Width |

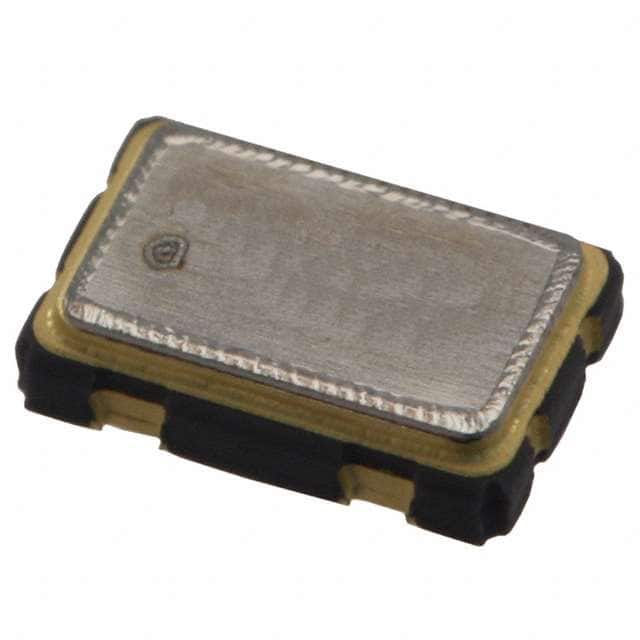

The ECS-3525-240-B-TR is a standard crystal oscillator (XO) from ECS Inc. It generates a 24 MHz clock signal in HCMOS logic, using a crystal base resonator. The oscillator operates from a nominal 2.5V supply voltage, with an allowable range of 2.25V to 2.75V. Frequency stability is ±50ppm, inclusive of tolerance, temperature, voltage, load, and aging. The operating temperature range is 0°C to 70°C, with a storage range of -55°C to 125°C.
This oscillator is housed in a compact 5.0mm x 3.2mm 4-SMD, no lead package with a height of 1.30mm, suitable for surface mount assembly. It features an enable/disable function (tri-state control) via pad 1. Typical supply current is 7mA, with a maximum of 8mA. Output symmetry is 40% to 60% at 50% VCC, and rise/fall times are 5ns typical, 6ns maximum into a 30pF load.
Typical applications include general purpose clock generation, digital logic timing, microcontroller clock sources, and networking equipment. The part is RoHS3 compliant, Pb-Free, and has MSL 1 (unlimited floor life). It is supplied in tape and reel packaging with 1000 pieces per reel.
The nominal supply voltage is 2.5V, with an operating range of 2.25V to 2.75V.
4-SMD, No Lead surface mount package.
0°C to 70°C.
Yes, it is RoHS3 compliant and Pb-Free.
HCMOS.
±50ppm.
Typical 7mA, maximum 8mA at 24 MHz.
