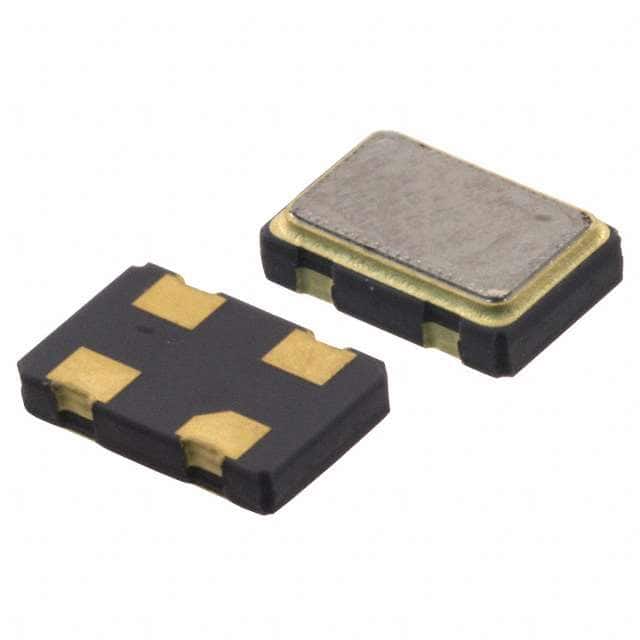

ECS-3518-1250-B-TR The ECS-3518-1250-B-TR is a 125 MHz XO (Standard) HCMOS oscillator from ECS Inc. It features ±50ppm frequency stability, operates at 1.8V, and comes in a 5.00mm x 3.20mm 4-SMD package.
Mfr Part #:

ECS-3518-1250-B-TR

Available from 1 distributors
Mfr Name: ECS Inc.
ECS Inc.
The ECS-3518-1250-B-TR is a 125 MHz XO (Standard) HCMOS oscillator from ECS Inc. It features ±50ppm frequency stability, operates at 1.8V, and comes in a 5.00mm x 3.20mm 4-SMD package.
✓ Total Stock: 105 pcs

ECS-3518-1250-B-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
105 pcs
On Request
105 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECS-3518-1250-B-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Output
Package / Case
Storage Temperature
Type
Voltage
Width
View Similar Products (0)

ECS-3518-1250-B-TR Description

Short technical summary and product information.

The ECS-3518-1250-B-TR is a surface-mount clock oscillator from ECS Inc.'s ECS-3518 series. It is a standard XO (crystal-based) oscillator that outputs a 125 MHz HCMOS signal with a frequency stability of ±50ppm. The device operates from a nominal 1.8V supply voltage (1.62V to 1.98V range) and draws a typical input current of 25mA.



This oscillator is designed for general-purpose timing applications requiring a precise 125 MHz clock. It features an enable/disable function via the tri-state control pin. The output has a 40/60% symmetry and a maximum rise/fall time of 5ns, driving a 30pF HCMOS load. The startup time is 10ms maximum.



The ECS-3518-1250-B-TR is housed in a compact 4-SMD, no-lead package measuring 5.00mm x 3.20mm with a height of 1.30mm. It is rated for an operating temperature range of 0°C to 70°C and a storage temperature range of -55°C to +125°C. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).

ECS-3518-1250-B-TR Quick Information

Product Type: Oscillator
Series: ECS-3518
Canonical Name: ECS-3518-1250-B-TR 125 MHz XO (Standard) HCMOS Oscillator
Subcategory: SMD Clock Oscillator

ECS-3518-1250-B-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

ECS-3518-1250-B-TR Features

  • 125 MHz HCMOS output clock oscillator.
  • ±50ppm frequency stability over temperature.
  • Operates from a 1.8V nominal supply voltage.
  • Compact 5.00mm x 3.20mm 4-SMD package.
  • RoHS3 compliant with MSL 1 rating.

ECS-3518-1250-B-TR Applications

  • Provides a 125 MHz clock for digital logic.
  • Suitable for networking and communications equipment.
  • Used in high-speed data processing systems.
  • Ideal for general-purpose timing and clock generation.

ECS-3518-1250-B-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the ECS-3518-1250-B-TR?

The nominal frequency is 125 MHz.

What is the supply voltage for this oscillator?

The nominal supply voltage is 1.8V, with a range of 1.62V to 1.98V.

What is the frequency stability of the ECS-3518-1250-B-TR?

The frequency stability is ±50ppm.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C.

What is the package type for this part?

The package is 4-SMD, No Lead, with dimensions of 5.00mm x 3.20mm x 1.30mm.

Is the ECS-3518-1250-B-TR RoHS compliant?

Yes, it is RoHS3 compliant.

What is the output logic type?

The output logic is HCMOS.
