| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Disable Delay Time | |
| Frequency | |
| Frequency Stability | |
| Frequency Stability (Minimum/Maximum @ -10 °C ~ +60 °C) | |
| Frequency Stability (Minimum/Maximum @ -40 °C ~ +85 °C) | |
| Height | |
| Input Current | |
| Input Voltage | |
| Length | |
| Load | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output High Level | |
| Output Low Level | |
| Package / Case | |
| Rise and Fall Time | |
| Standard Package Quantity | |
| Startup Time | |
| Storage Temperature | |
| Symmetry | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

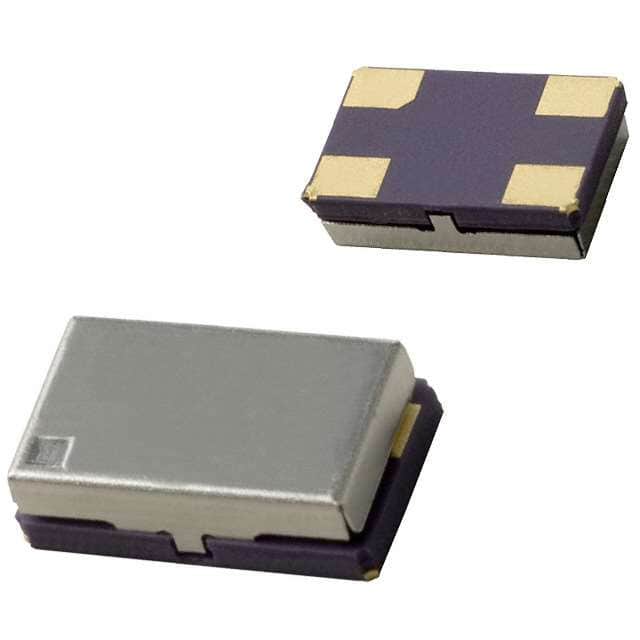

The ECS-327SMO-TR is a 32.768 kHz standard XO oscillator with CMOS output, designed for wireless PCMCIA and portable communication equipment. It features a wide supply voltage range of 1.5V to 6V, making it suitable for multi-voltage and battery-powered designs. Frequency stability is -60/+30 ppm over -10°C to 60°C and -140/+30 ppm over the full -40°C to 85°C operating range. The device draws 8 to 15 µA with a 15 pF load and has a startup time of 220 to 500 ms. Output symmetry is 45/55% to 55/45% at half Vcc. The oscillator is housed in a low-profile 4-SMD, no lead package measuring 6.5mm x 4.0mm x 2.0mm. It is supplied in tape and reel packaging with 2,000 units per reel and is RoHS compliant.
1.5V to 6V.
4-SMD, No Lead package with dimensions 6.5mm x 4.0mm x 2.0mm.
-40°C to 85°C.
Yes, it is RoHS3 compliant.
32.768 kHz.
CMOS.
-60/+30 ppm from -10°C to 60°C and -140/+30 ppm from -40°C to 85°C.
