| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Type | |
| Width |

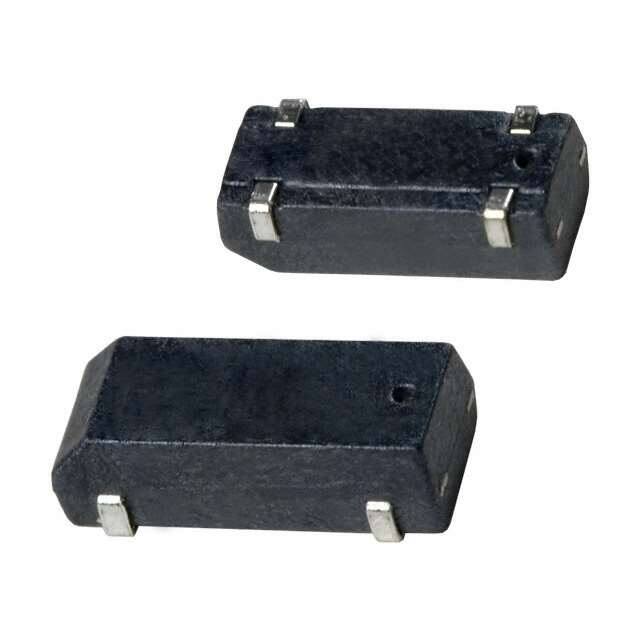

The ECS-.327-6-17-TR is a precision tuning fork crystal from the ECX-306 series by ECS Inc. It operates at a nominal frequency of 32.768 kHz with a load capacitance of 6 pF. The crystal offers a frequency tolerance of ±20 ppm and a maximum equivalent series resistance (ESR) of 50 kΩ. It operates in fundamental mode.
The crystal is housed in a compact 4-SOJ package with a 5.50 mm pitch. It measures 8.00 mm in length, 3.80 mm in width, and 2.50 mm in height, making it suitable for space-constrained surface-mount designs. The operating temperature range is -40°C to +85°C.
Tuning fork crystals are commonly used in real-time clock (RTC) circuits, timekeeping applications, and low-frequency timing references. The ECX-306 series is designed for long-term stability and industry-standard footprint compatibility. The part is supplied in tape and reel packaging with a standard quantity of 3000 pieces per reel.
32.768 kHz.
6 pF.
±20 ppm.
50 kΩ.
-40°C to +85°C.
4-SOJ with 5.50 mm pitch.
Yes, it is RoHS3 compliant.
