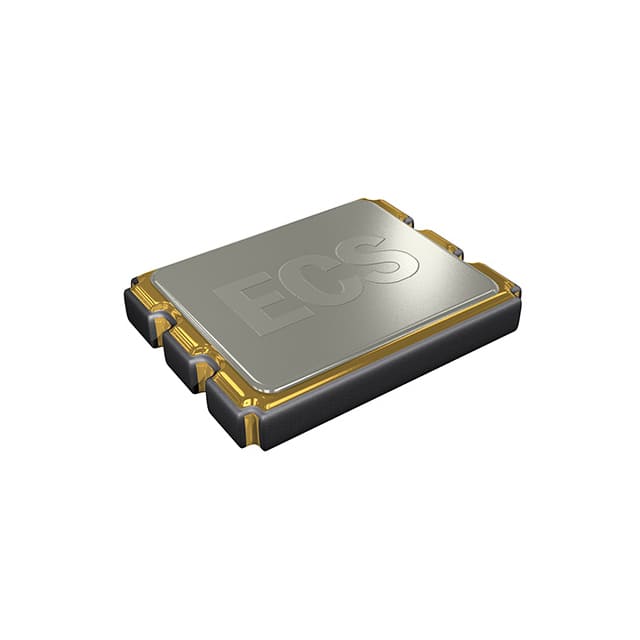

The ECS-3225MV-120-BN-TR is a surface-mount crystal oscillator from ECS Inc.'s 3225MV series. It provides a 12 MHz HCMOS output with a frequency stability of ±50 ppm over the full -40°C to +85°C temperature range. The oscillator operates from a supply voltage of 1.62V to 3.63V, making it compatible with 1.8V, 2.5V, and 3.3V logic systems. Key electrical characteristics include a 15 pF output load, 45/55% duty cycle, 7 ns rise/fall time, and 10 ms start-up time. Phase jitter is typically 1 ps (12 kHz to 20 MHz). Input current is 4 mA maximum under no load, with a standby current of 10 µA. The device features an enable/disable function (tri-state on pin 1).
The oscillator is packaged in a 4-SMD, no lead ceramic package measuring 3.2 mm x 2.5 mm x 1.2 mm. It is supplied on tape and reel with a standard quantity of 1000 pieces. The lead finish is gold (Au). The ECS-3225MV-120-BN-TR is RoHS3 compliant and has an MSL rating of 1 (unlimited). It is suitable for applications such as LoRa WAN, low-power portable devices, industrial equipment, and IoT systems.
1.62V to 3.63V.
4-SMD, no lead; 3.2 mm x 2.5 mm x 1.2 mm.
-40°C to +85°C.
Yes, RoHS3 compliant.
±50 ppm.
HCMOS.
45/55% at ½ Vdd.
