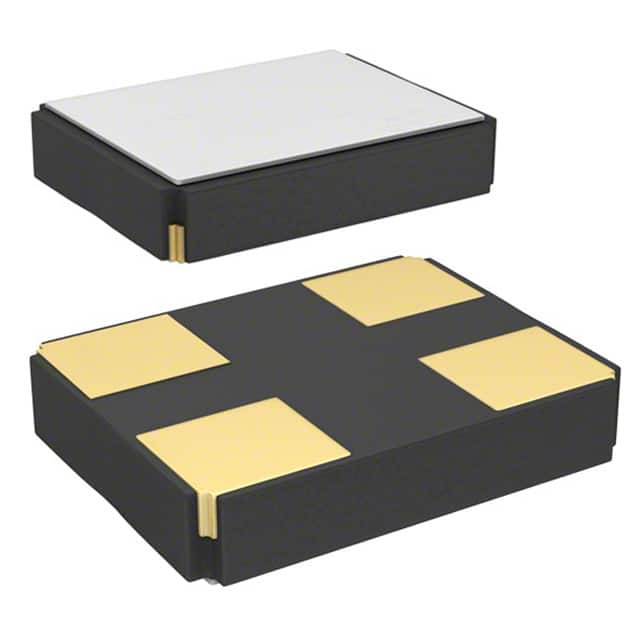

The ECS-320-8-47-JTN-TR is a 32 MHz quartz crystal from ECS Inc., part of the ECX-1247 series. It operates in fundamental mode with a load capacitance of 8 pF and features a maximum equivalent series resistance (ESR) of 80 Ω. Frequency tolerance and stability are both rated at ±20 ppm over the -40°C to +85°C operating temperature range.
This crystal is housed in a compact 4-SMD, No Lead ceramic package measuring 1.60 mm x 1.20 mm x 0.35 mm, making it suitable for space-constrained designs. It is supplied in tape and reel packaging with a standard quantity of 1000 pieces per reel.
Typical applications include LoRa WAN, RFID, NFC, WiFi, RF, video, and audio circuits where a stable and accurate clock source is required. The device is RoHS3 compliant and REACH unaffected.
32 MHz.
8 pF.
80 Ω.
±20 ppm.
-40°C to +85°C.
1.60 mm x 1.20 mm x 0.35 mm in a 4-SMD, No Lead package.
Yes, it is RoHS3 compliant (2015/863/EU).
