| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,300 pcs
|
15300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Shunt Capacitance | |
| Storage Temperature | |
| Tape & Reel Quantity | |
| Type | |
| Width |

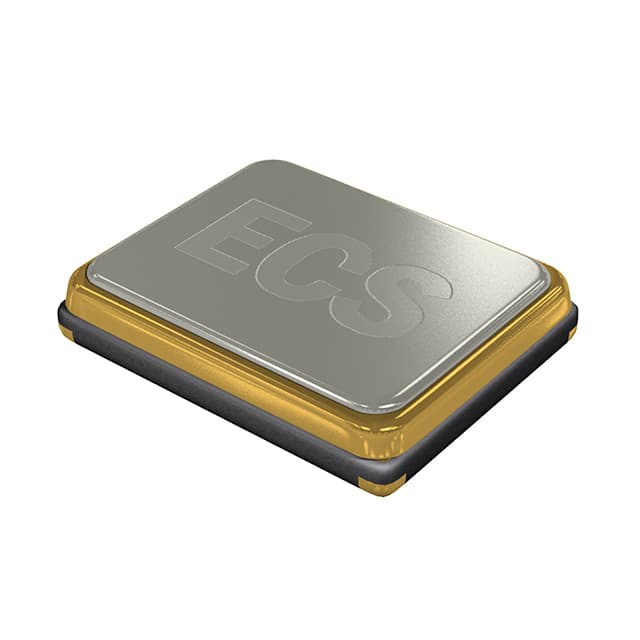

The ECS-320-8-37CKM is a 32.0000 MHz quartz crystal from ECS Inc., part of the ECX-1637 series. It is designed for surface mount applications in a compact 4-SMD, no lead package measuring 2.00 mm x 1.60 mm x 0.55 mm.
This crystal operates in fundamental mode with a frequency tolerance of ±10 ppm at +25°C and frequency stability of ±10 ppm over the -20°C to +70°C temperature range. It requires an 8 pF load capacitance and has a maximum equivalent series resistance (ESR) of 60 Ω. The drive level is limited to 100 µW, and the shunt capacitance is typically 5 pF.
The ECX-1637 series is suitable for wireless, cellular, and high-density applications such as LoRa WAN. The part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
The frequency is 32 MHz.
The load capacitance is 8 pF.
The operating temperature range is -20°C to +70°C.
It comes in a 4-SMD, no lead package measuring 2.00 mm x 1.60 mm x 0.55 mm.
Yes, it is RoHS3 compliant.
The maximum ESR is 60 Ω.
The frequency stability is ±10 ppm over -20°C to +70°C.
