| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Current - Supply (Max) | |
| Disable Delay Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Height - Seated (Max) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Symmetry | |
| Package / Case | |
| Rise & Fall Time | |
| Size / Dimension | |
| Stand-by Current | |
| Startup Time | |
| Supply Voltage | |
| Supply Voltage (Max) | |
| Supply Voltage (Min) | |
| Type | |
| Voltage | |
| Width |

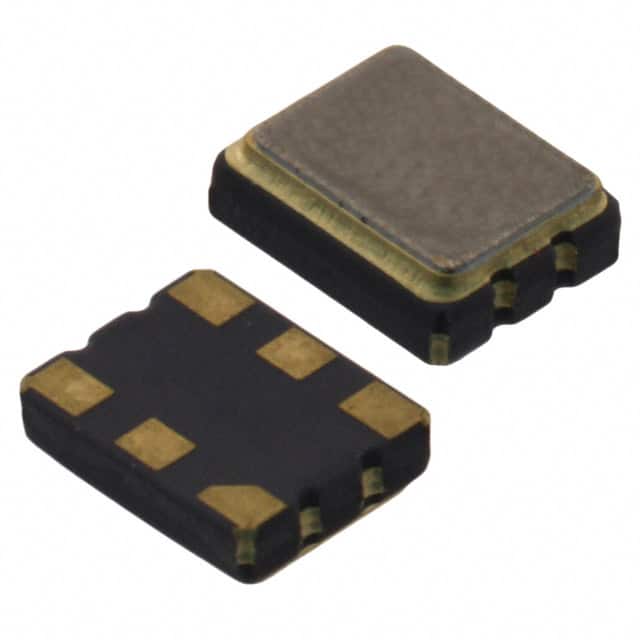

The ECS-2532HS-260-3-G is a 26 MHz crystal oscillator (XO) from ECS Inc. with CMOS output and a tri-state enable/disable function. It offers ±10ppm frequency stability over the full operating temperature range of -40°C to 85°C. The device operates from a 3.3V supply (3.135V to 3.465V) and draws a maximum supply current of 10mA, with a standby current of only 10µA. Rise and fall times are 5ns max, symmetry is 45/55%, startup time is 10ms, and disable delay is 100ns. Aging is specified at 2ppm maximum in the first year.
This oscillator is housed in a compact 4-SMD, No Lead package measuring 3.20mm x 2.50mm with a seated height of 1.10mm, making it suitable for space-constrained designs. It is RoHS3 compliant and supports CMOS load up to 15pF. Designed for high stability, it is ideal for applications requiring precise clock generation in telecommunications, networking, industrial control, and embedded systems.
3.3V (3.135V to 3.465V).
4-SMD, No Lead surface mount package.
-40°C to 85°C.
Yes, RoHS3 compliant.
±10 ppm.
CMOS.
Maximum 10 mA.
