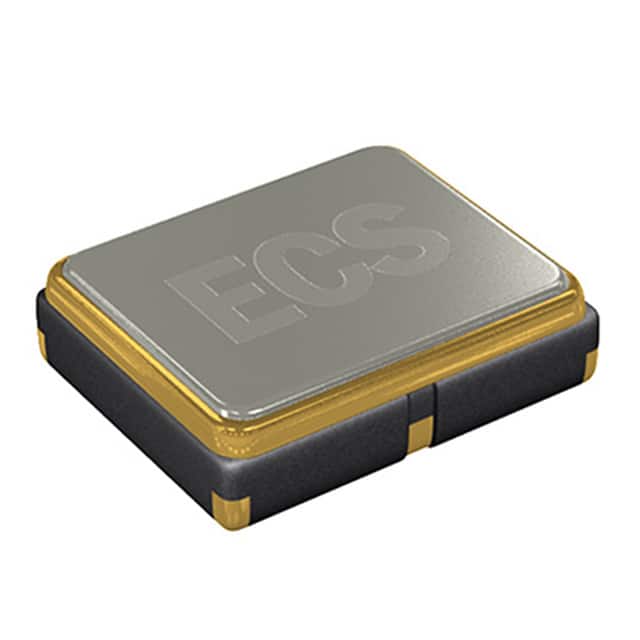

The ECS-2520Q-18-270-DP-TR is a surface-mount HCMOS XO (standard) oscillator from ECS Inc. It operates at 27 MHz with a supply voltage of 1.8V and a maximum current consumption of 3 mA (2.5 mA typical at 1.8V). The frequency stability is ±30 ppm over the extended temperature range of -40°C to +105°C.
This AEC-Q200 qualified oscillator features enable/disable function via tri-state pin 1. Output is HCMOS with 15 pF load, rise/fall time 10 ns max, and duty cycle 45/55%. The device is housed in a compact 4-SMD no lead ceramic package measuring 2.5mm x 2.0mm x 0.9mm, suitable for space-constrained automotive, industrial, and IoT applications.
The part is RoHS3 compliant, lead-free with gold finish, and MSL 1. It is supplied in tape and reel packaging with 1000 pieces per reel. Storage temperature range is -55°C to +125°C.
1.8V nominal.
4-SMD, No Lead, 2.5x2.0x0.9mm.
-40°C to +105°C.
Yes, RoHS3 compliant.
±30 ppm.
Yes, it is AEC-Q200 qualified for automotive applications.
HCMOS.
