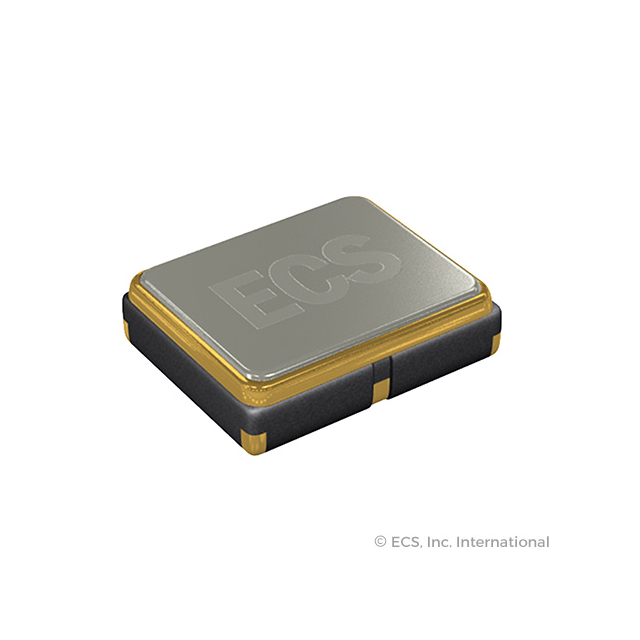

The ECS-2520MVLC-250-BN-TR is a low current CMOS crystal oscillator (XO) from ECS Inc.'s 2520MVLC series. It operates at a nominal frequency of 25 MHz with a frequency stability of ±50 ppm over the full -40°C to +85°C temperature range. The device supports a wide supply voltage range of 1.6V to 3.6V, making it compatible with 1.8V, 2.5V, and 3.3V power rails.
Key electrical characteristics include a maximum supply current of 2.2 mA at 3.3V with no load, a maximum rise/fall time of 7 ns, and a typical phase jitter of 150 fS (12 kHz to 20 MHz). The oscillator features an enable/disable function on pin 1 (tri-state) and provides a CMOS output with a 15 pF load. The duty cycle is specified at 45/55% at half Vdd.
The device is housed in a compact 2.5 mm x 2.0 mm x 0.8 mm 4-SMD, no lead ceramic package, suitable for space-constrained designs. It is supplied on tape and reel with a standard quantity of 1000 pieces per reel. The part is RoHS3 compliant and has an MSL rating of Level 1 (unlimited).
The operating temperature range is -40°C to +85°C.
The supply voltage range is 1.6V to 3.6V.
The frequency stability is ±50 ppm over the -40°C to +85°C temperature range.
The package is a 4-SMD, no lead ceramic package measuring 2.5 mm x 2.0 mm x 0.8 mm.
Yes, it is RoHS3 compliant.
The maximum supply current is 2.2 mA at 3.3V with no load.
It provides a CMOS output.
