| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,860 pcs
|
1860 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Lead Spacing | |
| Lead Style | |
| Load Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Stability | |
| Tape & Reel | |
| Tolerance |

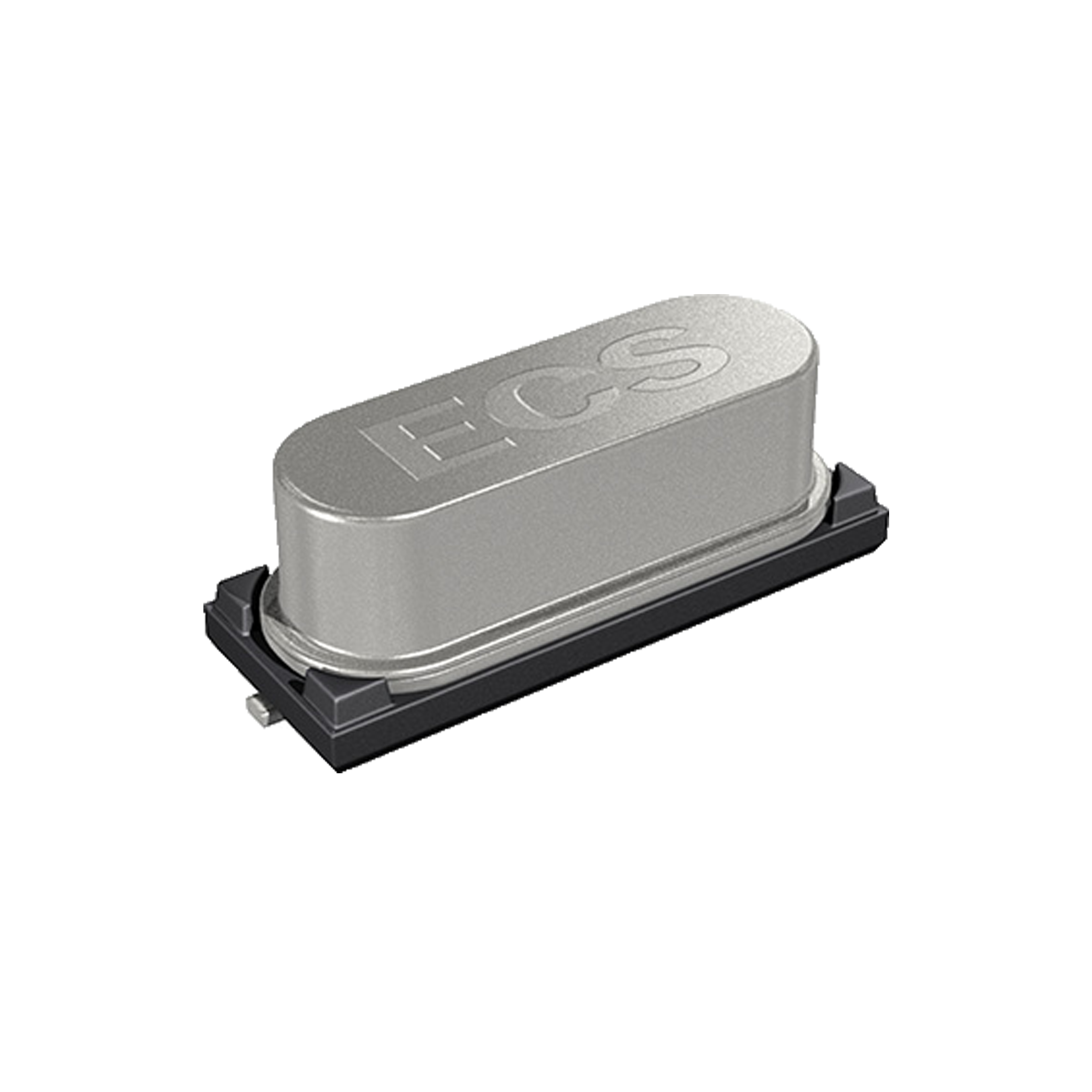

The ECS Inc. ECS-250-18-5PX-F is a surface mount crystal designed for electronic applications requiring precise frequency control. This crystal operates at a nominal frequency of 25 MHz with a tight tolerance of ±30ppm, ensuring stable performance.
Key electrical characteristics include a load capacitance of 18pF and an equivalent series resistance (ESR) of 30 Ω. The operating temperature range is -10°C to 70°C, making it suitable for various environmental conditions. The crystal is housed in a 5PX package with dimensions of 11.40mm x 4.80mm, designed for surface mounting.
This component is part of ECS Inc.'s range of surface mount crystals, known for their reliability and performance in demanding applications. The product is supplied on tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal operating frequency is 25 MHz.
The frequency tolerance is plus or minus 30 ppm.
The specified load capacitance is 18 picofarads.
The maximum ESR is thirty ohms.
The package measures 11.40mm by 4.80mm.
Yes, it is supplied in tape and reel format.
The operating temperature range spans from negative ten to seventy degrees Celsius.
