ECS-240-20-30B-TR

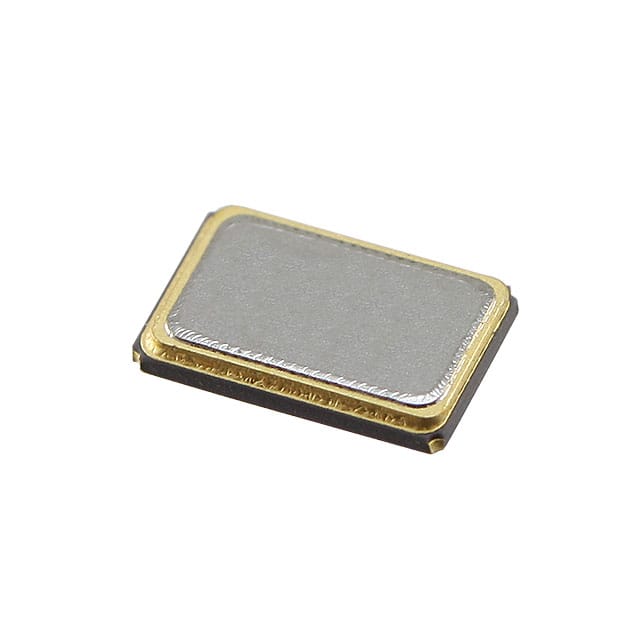

The ECS-240-20-30B-TR is a 24 MHz crystal from the ECX-53B series by ECS Inc. It operates in fundamental mode with a maximum equivalent series resistance of 30 Ω. The crystal features a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm over the operating temperature range of -20°C to +70°C. It requires a load capacitance of 20 pF. The shunt capacitance is 5 pF and the drive level is 100 μW. Aging is specified at ±5 ppm per year. This crystal is packaged in a compact 4-SMD, no lead package with dimensions 5.00 mm x 3.20 mm x 0.85 mm. The lead finish is gold. It is RoHS3 compliant and has an MSL rating of 1 (unlimited). The standard packaging is tape and reel with 1000 pieces per reel. This crystal is suitable for use in wireless applications, microprocessor clocks, and other timing circuits where board space is critical.
