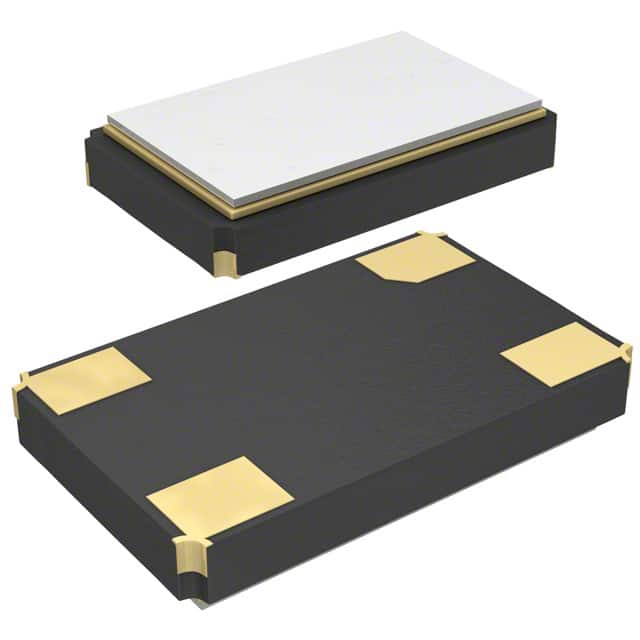

The ECS-240-18-30BQ-DS is a 24 MHz quartz crystal from ECS Inc., part of the ECX-53BQ series. It operates in fundamental mode with a load capacitance of 18 pF and a maximum ESR of 30 Ω. Frequency tolerance is ±30 ppm at +25°C, and frequency stability is ±100 ppm over the full operating temperature range of -40°C to +125°C.
This crystal is designed for surface mount assembly in a compact 4-SMD, No Lead package measuring 5.00 mm x 3.20 mm with a low profile height of 0.85 mm. It is AEC-Q200 qualified, making it suitable for automotive and other harsh environment applications. The device is RoHS3 compliant and has an MSL rating of Level 1 (unlimited).
With a drive level of 100 μW and typical shunt capacitance of 7 pF, this crystal offers reliable performance in timing and clock generation circuits. The extended temperature range and robust aging characteristics (±5 ppm first year) support long-term stability in demanding conditions.
24 MHz.
18 pF.
-40°C to +125°C.
Yes, RoHS3 compliant.
4-SMD, No Lead surface mount package.
±30 ppm at +25°C.
Yes, it is AEC-Q200 qualified.
