| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Disable Delay Time | |
| Enable / Startup Time | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Height - Seated (Max) | |
| Input Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Output Symmetry | |
| Output Type | |
| Package / Case | |
| Rise Time | |
| Size / Dimension | |
| Stand-by Current | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

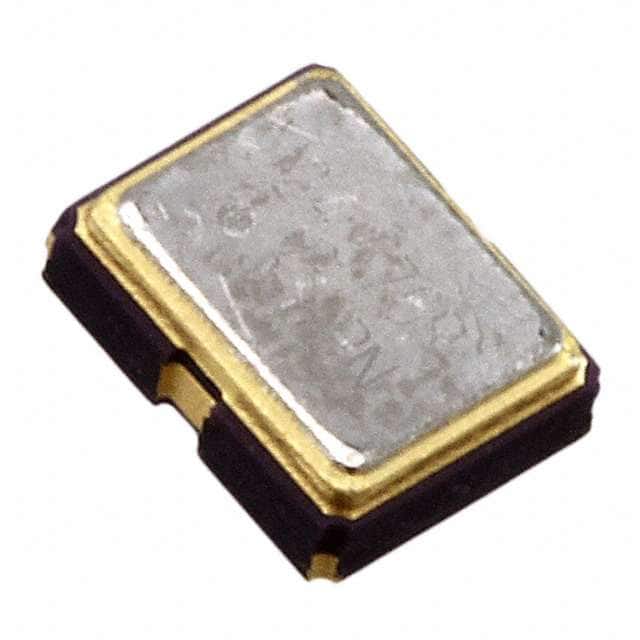

The ECS-2333-160-BN-TR is a surface-mount crystal oscillator (XO) from the ECS-2333 series, designed for high-density applications requiring a precise 16 MHz clock source. It delivers HCMOS output with a frequency stability of ±50 ppm across its full operating temperature range of -40°C to 85°C.
This oscillator operates from a 3.3V supply voltage (2.97V to 3.63V range) and features an Enable/Disable function for power management. Key electrical characteristics include a maximum input current of 7 mA, 15 pF output load, and fast rise/fall times of 10 ns. The device also offers a standby current of just 10 µA when disabled.
Housed in a compact 3.20mm x 2.50mm 4-SMD, No Lead package with a maximum seated height of 1.00mm, the ECS-2333-160-BN-TR is suitable for space-constrained designs. It is supplied on tape and reel with a standard quantity of 1000 pieces per reel.
The supply voltage is 3.3V typical, with a range of 2.97V to 3.63V.
It comes in a 4-SMD, No Lead package with dimensions of 3.20mm x 2.50mm and a maximum seated height of 1.00mm.
The operating temperature range is -40°C to 85°C.
Yes, the datasheet states it is PbFree/RoHS Compliant.
The frequency stability is ±50 ppm.
It provides HCMOS output.
Yes, it features an Enable/Disable function.
