| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Input Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Symmetry | |
| Output Voltage High | |
| Output Voltage Low | |
| Package / Case | |
| Rise Time | |
| Start-up Time | |
| Storage Temperature Range | |
| Supply Voltage | |
| Type | |
| Voltage | |
| Width |

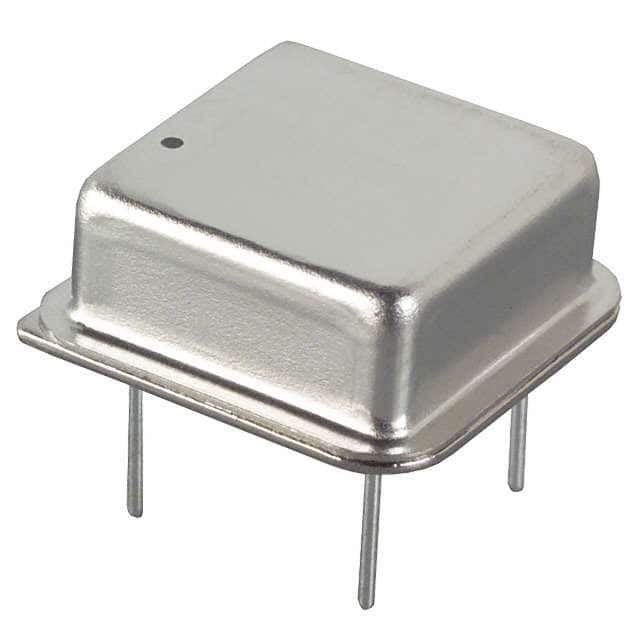

The ECS-2200B-098 is a 9.8304 MHz crystal oscillator from the ECS-2200 series by ECS Inc. It is a standard XO (crystal oscillator) with tri-state enable/disable function, supporting both HCMOS and TTL logic levels.
Key specifications: frequency stability is ±50 ppm over all conditions, supply voltage is 5V nominal with a maximum input current of 25 mA (for frequencies 1-25 MHz). Output symmetry is 50% ±3% at 50% Vdd, and rise/fall times are 5 ns maximum.
Operating temperature range is 0°C to 70°C, storage from -55°C to +125°C. The oscillator is RoHS3 compliant and REACH unaffected. Package is 8-DIP through-hole with metal can, dimensions 13.2mm x 13.2mm x 5.4mm.
This oscillator is suitable for general-purpose clock generation in digital systems requiring a stable and reliable frequency reference. The tri-state function allows for output disable when needed.
The supply voltage is 5V nominal.
Package is 8-DIP, 4 Leads (Half Size, Metal Can).
Operating temperature range is 0°C to 70°C.
Yes, it is RoHS3 compliant.
It supports HCMOS and TTL output logic.
Frequency stability is ±50 ppm.
Yes, it features tri-state enable/disable.
